Remove/Install Desiccant Cartridge - AR83.30-P-6521LF
Model 217, 222
Except Code 1U6 (R744 refrigerant)

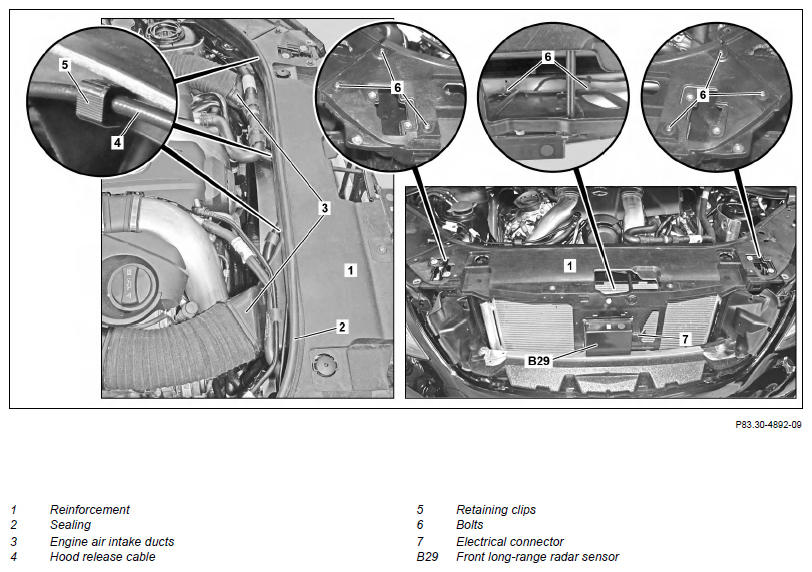

Shown On Model 222 With Code P20 (Driving Assistance Package Plus)

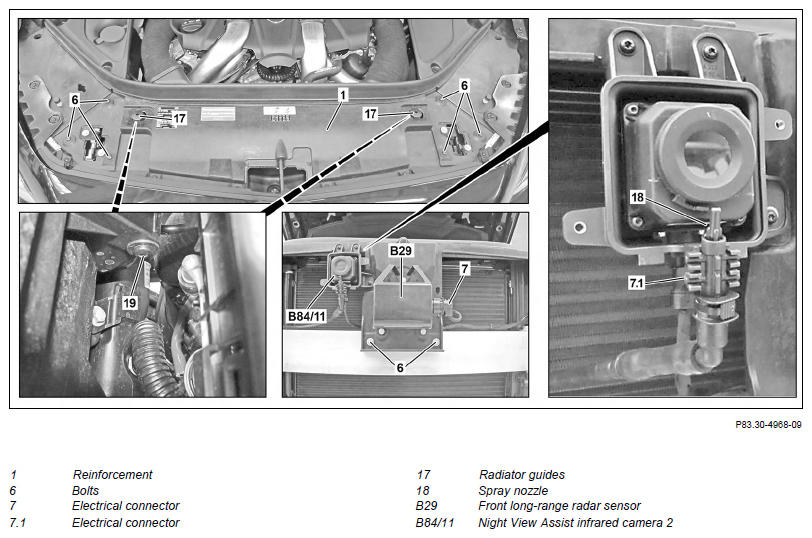

Shown On Model 217 With Code 610 (Night View Assist) and code P20 (Driving Assistance Plus Package)

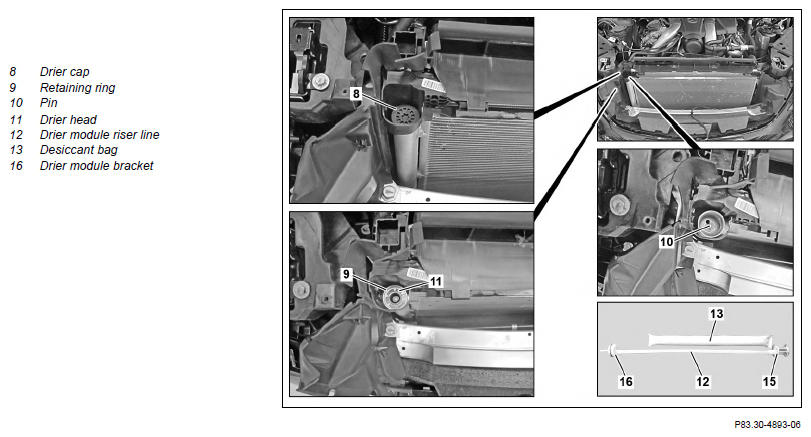

Shown On Model 222
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 217, 222 with code 2U8 (Alternative refrigerant) except code 1U6 (R744 refrigerant) |
AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 217, 222 except code 1U6 (R744 refrigerant) except code 2U8 (Alternative refrigerant) |
AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R1234yf | Model 217, 222 with code 2U8 (Alternative refrigerant) except code 1U6 (R744 refrigerant) |
AH83.30-P-0003-02A | |
| Notes on handling refrigerant R134a | Model 217, 222 except code 1U6 (R744 refrigerant) except code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-01KOA | |
| Remove | |||
| 1 | Drain air conditioning system | AR83.30-P-1760LF | |
| 2 | Detach sealing (2) in area of front module | ||
| 3 | Remove engine intake air ducts (3) | ||
| 4.1 | Remove front bumper | Model 217 except code 1U6 (R744 refrigerant) |
|
| AR88.20-P-2000LC | |||
| 4.2 | Remove radiator grille | Model 222 except code 1U6 (R744 refrigerant) |
|
| AR88.40-P-4001LF | |||
| 5 | Open retaining clips (5) and unhook hood release cable (4) | ||
| 6 | Release and disconnect electrical connector (7) from front long range radar sensor (B29) | Model 217, 222 with code P20 (Driving assistant package Plus) except code 1U6 (R744 refrigerant) |
|
| 7 | Release and disconnect electrical connector (7.1) from infrared camera for 2 Night View Assist (B84/11) | Model 217, 222 with code 610 (Night view assist) except code 1U6 (R744 refrigerant) |
|
| 8 | Unclip spray nozzle (18) from infrared camera for 2 Night View Assist (B84/11) | Model 217, 222 with code 610 (Night view assist) except code 1U6 (R744 refrigerant) |
|
| 9 | Remove bolts (6) from reinforcement (1) | ||
| 10 | Remove reinforcement (1) with upper radiator guides (17) | ||
| 11 | Unscrew drier cap (8) | ||
| 12 | Remove circlip (9) | ||
| 13 | Screw bolt M12 into drier head (11) and pull out drier head (11) | ||
| 14 | Use pliers to pull out drier module bracket (16) at pin (10) | ||
| Install | |||
| 15 | Apply new desiccant bag (13) on drier module riser line (12) | ||
| 16 | Install drier module bracket (16) with new desiccant bag (13) | ||
| 17 | Remove bolt M12 from drier head (11) | ||
| 18 | Install retaining ring (9) | ||
| 19 | Screw in drier cap (8) | ||
| 20 | Install reinforcement (1) with upper radiator guides (17) | ||
| 21 | Tighten bolts (6) on reinforcement (1) | ||
| 22 | Clip in spray nozzle (18) for infrared camera for 2 Night View Assist (B84/11) | Model 217, 222 with code 610 (Night view assist) except code 1U6 (R744 refrigerant) |
|
| 23 | Plug electrical connector (7.1) onto infrared camera for 2 Night View Assist (B84/11) until it locks in to place | Model 217, 222 with code 610 (Night view assist) except code 1U6 (R744 refrigerant) |
|
| 24 | Plug electrical connector (7) onto front long range radar sensor (B29) until it locks into place | Model 217, 222 with code P20 (Driving assistant package Plus) except code 1U6 (R744 refrigerant) |
|
| 25 | Clip hood release cable (4) into retaining clips (5) and close retaining clips (5) | ||
| 26.1 | Install radiator trim | Model 222 except code 1U6 (R744 refrigerant) |
|
| AR88.40-P-4001LF | |||
| 26.2 | Install front bumper | Model 217 except code 1U6 (R744 refrigerant) |
|
| AR88.20-P-2000LC | |||
| 27 | Install engine air intake ducts (3) | ||
| 28 | Install sealing (2) | ||
| 29 | Fill air conditioning system | AR83.30-P-1760LF | |
| 30 | Perform initialization of front long range radar sensor (B29) using a diagnostic system | Model 217, 222 with code P20 (Driving assistant package Plus) except code 1U6 (R744 refrigerant) |
|
| AD00.00-P-2000-04B | |||
| 31 | Check air conditioning for proper operation |
