Remove/Install Radiator Grille - AR88.40-P-4001LF
Model 222
MODIFICATION NOTES
| 20.06.2017 | Operation steps "Release and disconnect electrical connector (1, 2)". | Operation steps 3 and 4 added. |

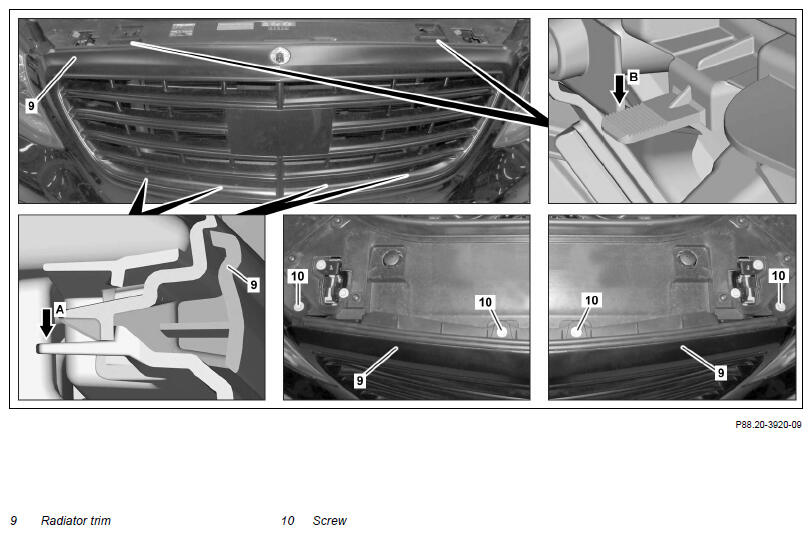

Shown on model 222 up to model year 2018

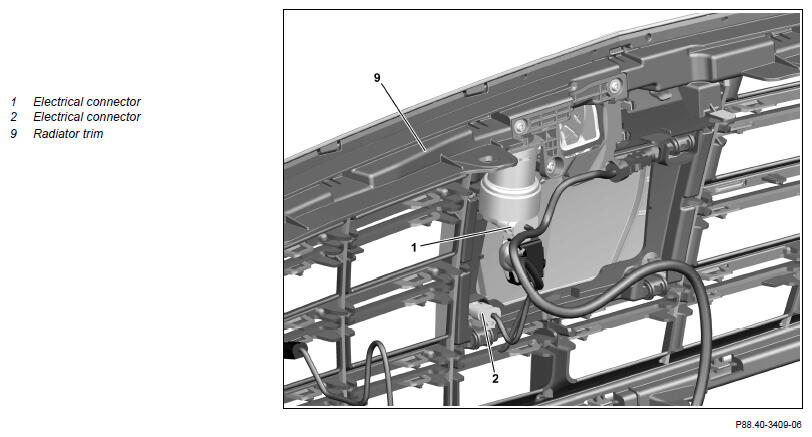

Shown on model 222 from model year 2018 with code 501 (360° camera), with code 233 (DISTRONIC PLUS)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove plastic caps and unscrew screws (10) | ||
| 2 | Tilt upper radiator grille (9) toward front and release engagements (arrow B) | ||
| 3 | Release and disconnect electrical connection (1) | Model 222 with code 501 (360° camera) |
|
| 4 | Release and disconnect electrical connection (2) | Model 222 as of model year 2018 with code 233 (DISTRONIC PLUS) |
|
| 5 | Release engagements (arrow A) | ||
| 6 | Remove radiator trim (9) | ||
| Engine hood to radiator trim | *BE60.00-P-1005-01BA | ||
| Protrusion of radiator trim/engine hood | *BE60.00-P-1006-01BA | ||
| Fig 1 | |||
| 7 | Install in the reverse order | ||
| 8 | Connect diagnostic device and calibrate front 360° camera | Model 222 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 222 | ||
|---|---|---|---|---|
| BE60.00-P-1005-01BA | Engine hood to radiator trim | Dimension "C" | mm | 3, 5 (±1) |
| For picture, see | AR60.00-P-0700-01LF | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 222 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01BA | Protrusion of radiator trim/engine hood | Dimension "C" | mm | 1 (±1) |
| For picture, see | AR60.00-P-0700-01LF | |||
