Telephone Control Unit, Component Description - GF82.70-P-4153LFM
Model 217, 222 as of model year 2018 with code 380 (Car telephony package)
Shown model 222.0

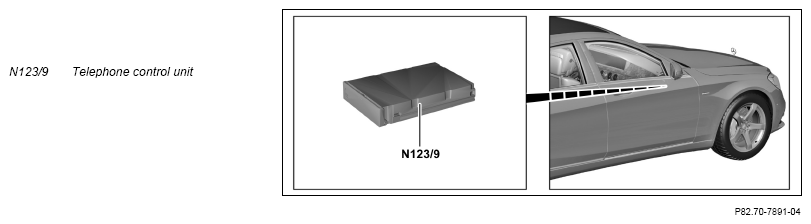

Fig 1: Telephone Control Unit Components Location - Model 222 As Of Model Year 2018 With Code 380 (Shown Model 222.0)
Location
The telephone control unit is located in the glove compartment.
Tasks
The telephone control unit has the following tasks:
- Power supply via circuit 30t and circuit 31
- Receives the wake-up signal via the telematics CAN (CAN A) from the head unit (A26/17)
- Communication (settings, Internet configuration, Internet data) with the head unit via WLAN and the WLAN antenna (A2/83)
- Communication with the head unit via the telematics CAN (e.g. status of the subscriber identification module (SIM) card, operation signals)
- Communication with a mobile phone via Bluetooth®
- Communication with mobile phone network over the telephone antenna changeover switch (A2/168) (with code 899 (Multifunction telephony)), the antenna changeover switch for the telephone, stationary heater and Remote Parking Pilot (A2/155) (with code B24 (Remote control for stationary heater), with code 503 (Pre-installation for Remote Parking Pilot)) and the multifunction antenna (A28/11) (model 222) or the telephone and stationary heater antenna (A2/22) (model 217)
- If the telephone control unit is selected as the Wi-Fi hotspot: provision of Internet connection for external guests
- With code 899 (Multifunction telephony): actuation of telephone antenna changeover switch
Structure
The telephone control unit has the following components:
- Communications module
- WLAN interface
- Interface for Bluetooth®
- Card reader for SIM card
| Telephone (TEL) wiring diagram | N123/9 | PE82.70-P-2000-97SEA |
