Remove/Install Headlamp Unit - AR82.10-P-4730LF
Model 222
Shown on Model 222 from Model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Carry out initial startup of left front lamp unit (E1) or right front lamp unit (E2) | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Detach bumper in area of left front lamp unit (E1) or right front lamp unit (E2) | When removing left front lamp unit (E1) or right front lamp unit (E2). | |
| AR88.20-P-2000LF | |||
| 3.2 | Remove front bumper | When removing left front lamp unit (E1) and right front lamp unit (E2). | |
| AR88.20-P-2000LF | |||

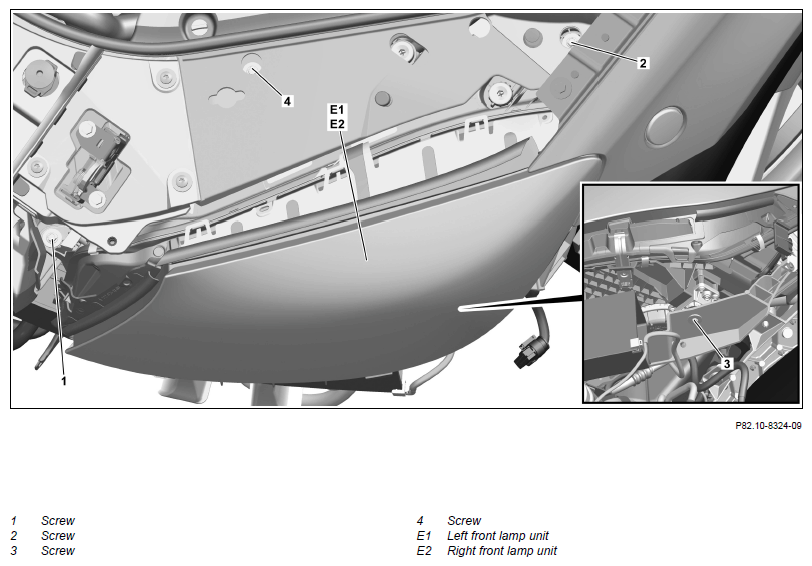

| 4 | Remove screws (1, 2, 3) | ||
| 5 | Remove screw/bolt (4) | Model 222 with code 640 (SAE dynamic LED headlamps right-hand traffic) Model 222 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|
| 6 | Remove left front lamp unit (E1) or right front lamp unit (E2) until electrical connector is accessible on the rear side | Carefully remove left front lamp unit (E1) or right front lamp unit (E2). Otherwise, the left front lamp unit (E1) or right front lamp unit (E2) will be damaged. |
|
| 7 | Release and disconnect electrical connector from left front lamp unit (E1) or right front lamp unit (E2) | ||
| 8 | Remove left front lamp unit (E1) or right front lamp unit (E2) | ||
| Replace | |||
| 9.1 | Modify left front actuation module, LED exterior lighting or right front actuation module LED exterior lighting | Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps right-hand traffic) Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|
| AR82.10-P-4650LF | |||
| 9.2 | Modify front LED matrix lamp unit control unit | Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps right-hand traffic) Model 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|
| AR82.10-P-2025LFM | |||
| 10 | Modify left headlamp control unit or right headlamp control unit | AR82.10-P-4660LF | |
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Check and correct the headlamp adjustment | ||
| AP82.10-P-8260HA |
