Remove/Install Ambiance Illumination Control Unit - AR82.20-P-0001LFM
Model 217, 222
As Of Model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Start up the ambient lighting control unit (N162) | When replacing the ambient lighting control unit (N162). | |
| AD00.00-P-2000-04B | |||
| 3 | Remove driver's seat | AR91.10-P-1000LF | |

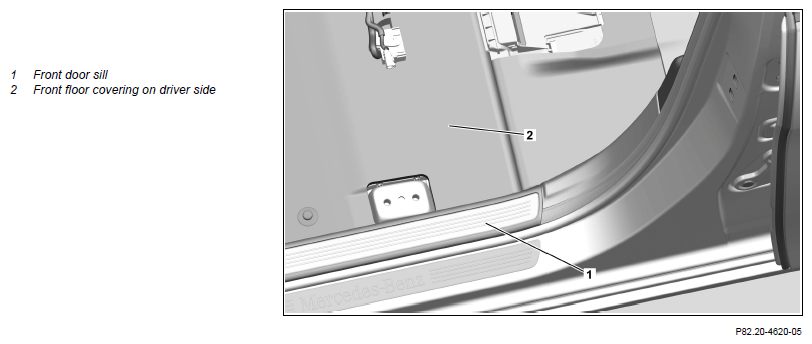

| 4 | Unclip front door sill (1) | ||
| 5 | Lift front floor covering on driver side (2) until ambient lighting control unit is accessible (N162) | ||

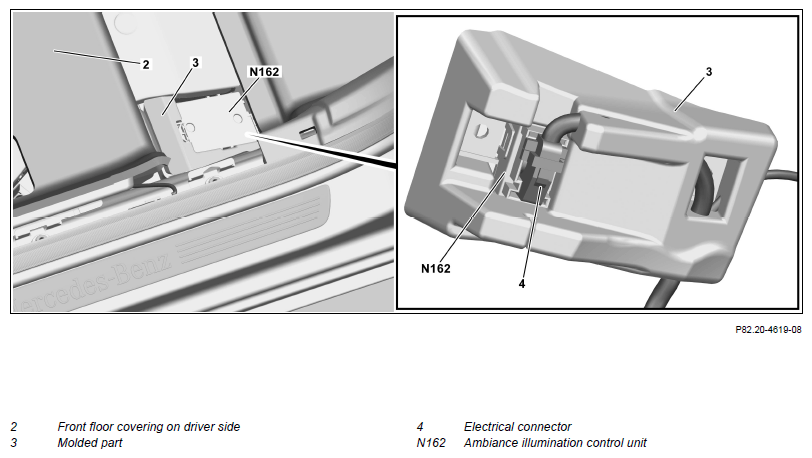

| 6 | Lift molded part (3) with ambient lighting control unit (N162) until electrical connection (4) is accessible | ||
| 7 | Release and disconnect electrical connection (4) | ||
| 8 | Remove ambient lighting control unit (N162) from molded part (3) | ||
| 9 | Install in the reverse order |
