Windshield Wiper System, Function - GF82.30-P-0001LF
Model 217, 222

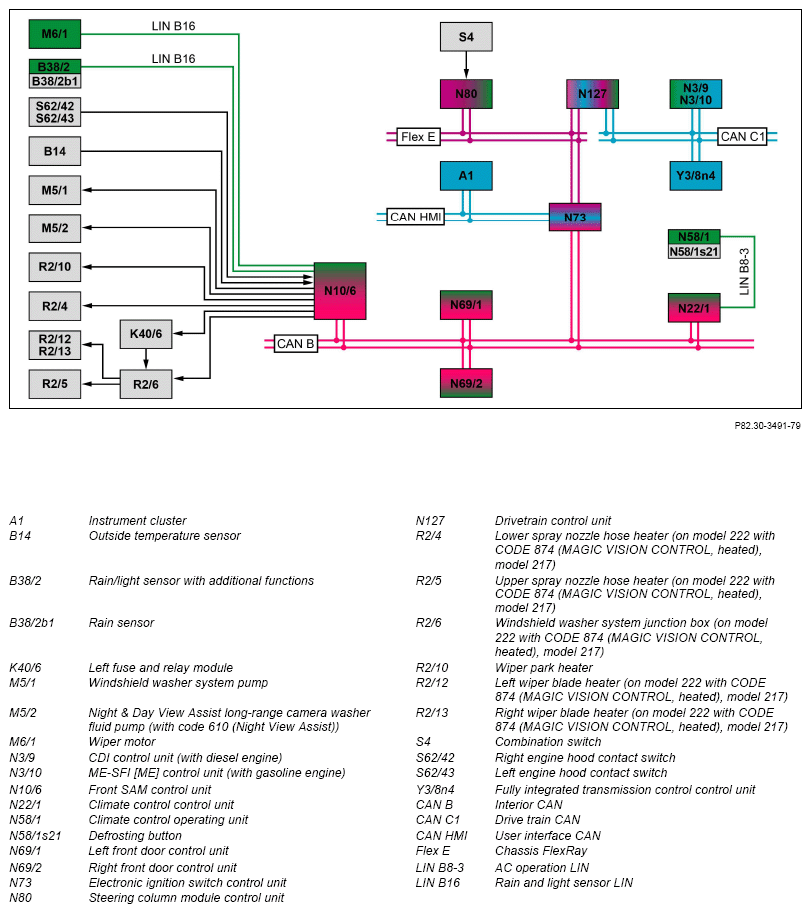

Shown on model 217, 222
Windshield wiper system, general
The windshield wiper system actuates the windshield wipe and wash function.
The windshield wiper system function consists of the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Windshield washer, function
- Cleaning system function (with code 610 (Night View Assist))
- Heating wiper support, function
- Spray nozzle hose heater, function (on model 222 with CODE 874 (MAGIC VISION CONTROL, heated), model 217)
- Wiper blade heater, function (on model 222 with CODE 874 (MAGIC VISION CONTROL, heated), model 217)
| Windshield wiper, function | GF82.30-P-3004LF | ||
| Windshield washer, function | GF82.35-P-3002LF | ||
| Cleaning system, function | Model 217, 222 with code 610 (Night view assist) | GF82.35-P-3011LF | |
| Heating wiper support, function | GF82.30-P-2003LF | ||
| Spray nozzle hose heater function | Model 217 Model 222 with code 874 (MAGIC VISION CONTROL, heated) |
GF82.35-P-3009LF | |
| Wiper blade heater, function | Model 217 Model 222 with code 874 (MAGIC VISION CONTROL, heated) |
GF82.30-P-2004LF |
