Retrofit Illuminated Door Sill Molding - AZ82.20-P-0001LF
Model 222.0/1/9
MODIFICATION NOTES
| 23.03.2016 | Tightening torque for ground point on frame floor assembly in front passenger footwell (W85/2) newly added | Step 4 | AZ82.20-P-0001-04LF |
| 23.03.2016 | Tightening torque for ground point on frame floor assembly in front passenger footwell (W85/2) newly added | Operation step 14.1, 14.2 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove driver and front passenger seat | ||
| AR91.10-P-1000LF | |||
| 2 | Disconnect battery ground line | ||
| AR54.10-P-0003LF | |||
| 3 | Remove front inner door sill | Fig 1 | |
| 4 | Remove cover below left of instrument panel | ||
| AR68.10-P-1500LF | |||
| 5 | Remove side paneling of instrument panel at left | ||
| 6 | Remove cover below right dashboard | ||
| AR68.10-P-1520LF | |||
| 7 | Release door seal in front entrance area | ||
| 8 | Remove outer front door sill | Fig 2 | |
| 9 | Remove front floor covering | ||
| 10 | Remove outer rear door sill | Model 222.1/9 | |
| Fig 2 | |||
| 11 | Remove inner rear door sill | Model 222.1/9 |
Fig 1 |
| 12 | Detach cover from B-pillar at bottom | Model 222.1/9 | |
| AR68.30-P-4700LF | |||
| Install | |||

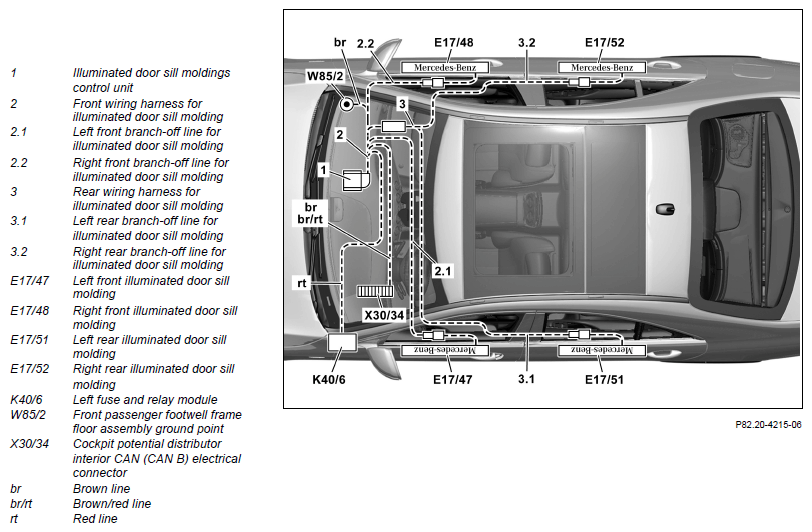

| 13 | Retrofit illuminated door sill molding control unit (1) | AZ82.20-P-0001-05LF | |
| Self-adhesive Velcro fastener | *BR00.45-Z-1084-02A | ||
| 14.1 | Retrofit wiring harness for front illuminated door sill molding (2) | Model 222.0 | AZ82.20-P-0001-04LF |
| *BA00.19-P-1037-01C | |||
| 14.2 | Retrofit wiring harness for front illuminated door sill molding (2) and wiring harness for rear illuminated door sill molding (3) | Model 222.1/9 | AZ82.20-P-0001-04LF |
| *BA00.19-P-1037-01C | |||
| 15 | Retrofit left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) | AZ82.20-P-0001-01LF | |
| 16 | Retrofit left rear illuminated door sill molding (E17/51) and right rear illuminated door sill molding (E17/52) | Model 222.1/9 | AZ82.20-P-0001-01LF |
| 17 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 18 | Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001LF" under field organization texts for DG 68 and DG 82 | ||
| Check | |||
| 19 | Perform function check on left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) | The front left illuminated door sill molding (E17/47) or the front right illuminated door sill molding (E17/48) automatically switches off approx. 5 minutes after opening the respective door. |
|
| 20 | Perform function check of rear left illuminated door sill molding (E17/51) and rear right illuminated door sill molding (E17/52) | Model 222.1/9 The rear left illuminated door sill molding (E17/51) or the rear right illuminated door sill molding (E17/52) automatically switches off approx. 5 minutes after opening the respective door. |
GROUND POINTS
| Number | Designation | Model 222 | ||
|---|---|---|---|---|
| BA00.19-P-1037-01C | Front passenger footwell frame floor assembly ground point | W85/2 | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Self-adhesive Velcro fastener | ACS Armoured Car Systems GmbH Industriestr. 13 86551 Aichach Germany Tel. +49 8251 8926-0 Fax +49 8251 8926-40 www.acs-armcar.com |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 222 680 04 01 | Parts kit for set of two illuminated door sill moldings, AMG, model 222.0 | 1 |
| A 222 680 05 01 | Parts kit for set of four illuminated door sill moldings, AMG, model 222.1 | 1 |
| A222 680 93 05 | Parts kit for set of two illuminated door sill moldings, AMG, model 222.9 | 1 |
