Remove/Install Front Stowage Compartment On Front Center Console - AR68.20-P-0900LF
Model 217, 222

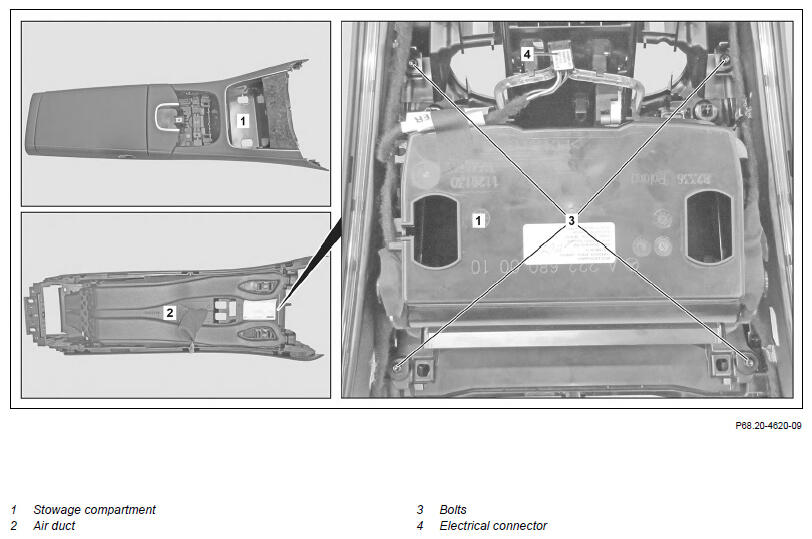

Shown on model 222 up to model year 2018 except code 582 (Air conditioning system in rear)

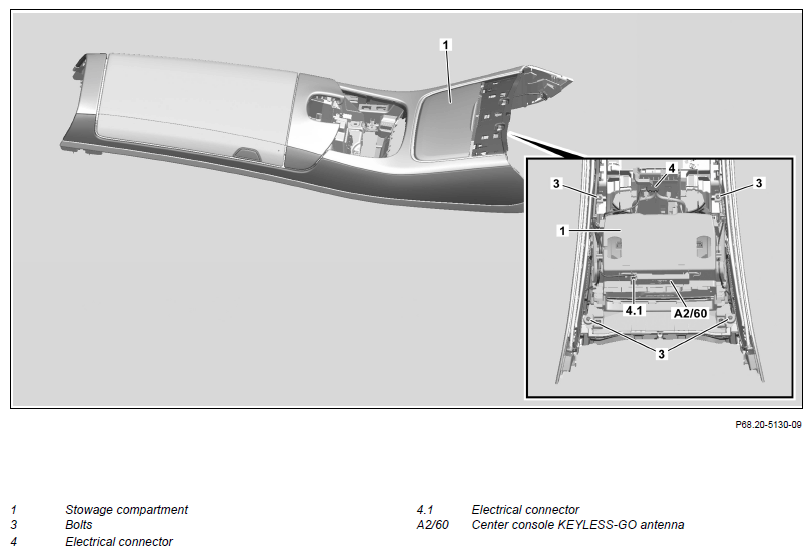

Shown on model 222 from model year 2018 with code 889 (KEYLESS-GO)

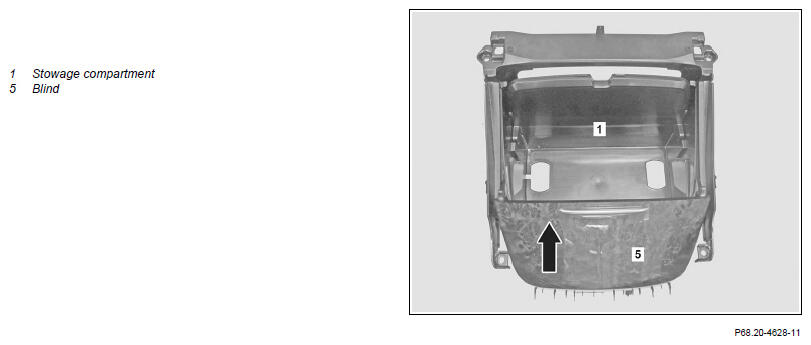

Shown on model 222 up to model year 2018
| Remove/install | |||
| 1 | Remove center console upper section. | AR68.20-P-2012LF | |
| 2 | Remove trim element of front center console. | AR68.20-P-2101LF | |
| 3 | Remove touchpad control unit. | Model 217, 222 with code 448 (Touchpad) |
|
| AR54.21-P-0503LF | |||
| 4 | Remove air duct (2). | Model 217.3 Model 222 except code 582 (Air conditioning, rear) |
|
| 5 | Disconnect electrical connector (3) and remove fiber-optic cables. | Model 217, 222 with code 877 (Ambient lighting) |
|
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| 6 | Disconnect electrical connector (4) at center console KEYLESS-GO antenna (A2/60). | Model 217, 222 as of model year 2018 with code 889 (KEYLESS-GO) |
|
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| 7 | Close stowage compartment cover (1) and remove screws (2). | ||
| 8 | Unclip catch tabs of stowage compartment (1) from center console upper section. | ||
| 9 | Remove stowage compartment (1). | ||
| 10 | Slide trim (5) in direction of arrow and remove. | When replacing panel (5). |
|
| 11 | Install in the reverse order. |
