Remove/Install Trim Piece On Front Of Center Console - AR68.20-P-2101LF

Model 217, 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

Shown on model 222 up to model year 2018

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

	Remove
1	Open front stowage compartment cover

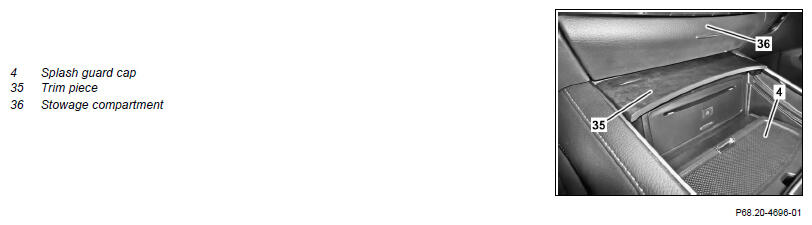

2	Open splash guard cap (4)	Model 217, 222 up to model year 2018

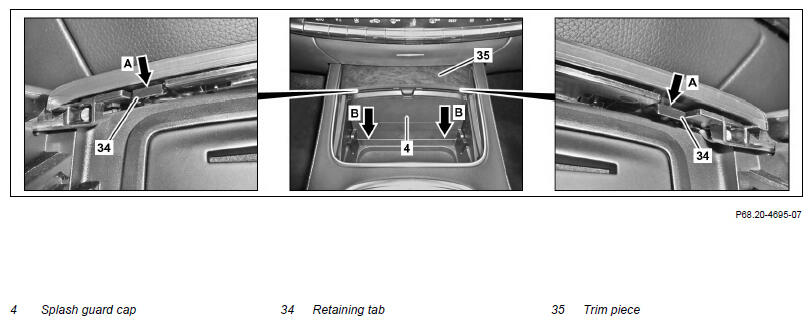

3	Press retaining tabs (34) downward (arrow direction A) and pull trim piece (35) toward rear (arrow direction B)	Pull trim piece (35) toward rear only until it is loose.

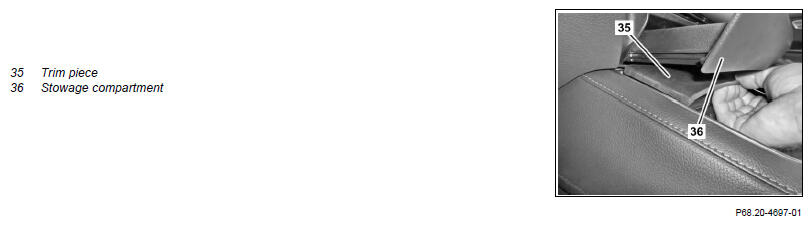

4	Open stowage compartment (36) on instrument panel
5	Lift trim piece (35) and pull out toward rear
	Install
6	Open stowage compartment (36) on instrument panel

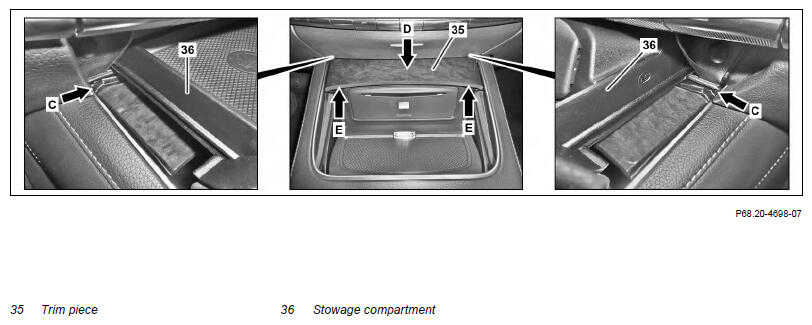

7	Lay trim piece (35) down on center console	Trim element (35) has approx. 4 to 5 mm clearance to instrument panel (arrows C).
8	Close stowage compartment (36) on instrument panel
9	Push trim piece (35) toward front (arrows E)	Simultaneously press trim piece in center (arrow D) downward.
10	Close front stowage compartment cover
	Check
11	Trim element (35) and stowage compartment cover must run in parallel
