Remove/Install Cover For Steering Column On Instrument Panel - AR68.10-P-1060LF
Model 217
Model 222.0/1/9

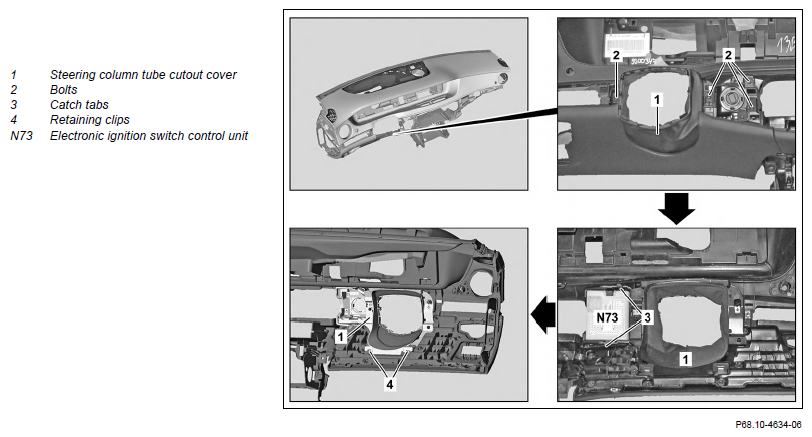

Shown on model 222
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove dashboard | MODEL 217 | AR68.10-P-1000LC |
| MODEL 222.0/1/9 | AR68.10-P-1000LF | ||
| 2 | Remove bolts (2) | ||
| 3 | Unlock catch tabs (3) and remove electronic ignition lock control unit (N73) | ||
| 4 | Unclip retaining clips (4) | ||
| 5 | Remove jacket tube cutout cover (1) from instrument panel | ||
| 6 | Install in the reverse order |
