(Remove/Install Front Section Of Roof Lining - AR68.30-P-4306LFS)

Model 222.9

with code Z07 (B7 rumoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove panelings from B-pillars		AR68.30-P-4700LF
2	Remove paneling on A-pillars		AR68.30-P-4050LF
3	Remove cover from inside rearview mirror
4	Move driver and passenger seat toward rear and move backrest downward as far as possible
5	Remove overhead control panel control unit		AR82.20-P-1000LF

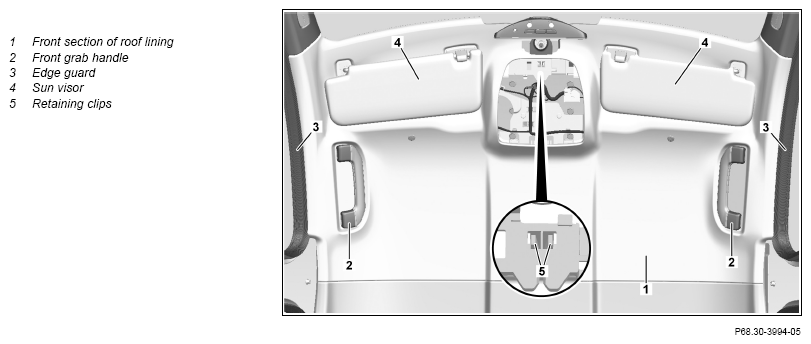

6	Remove sun visors (4)		AR68.60-P-5480NKB
7	Remove front grab handles (2)		AR68.30-P-4330NKB
8	Detach edge guard (3) in area of front section of roof lining (1)
9	Unclip retaining clips (5)

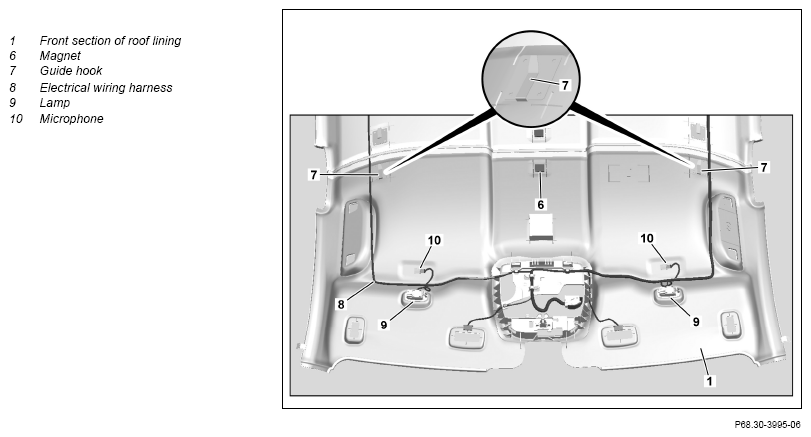

10	Carefully release front section of rear roof lining (1) at center, pull downward and then slide forward.	Slide front section of roof lining (1) toward front until guide hooks (7) are guided out of roof paneling mounts. Front section of roof lining (1) is also attached to roof paneling with magnet (6).
11	Detach electrical wiring harness (8) from front section of roof lining (1) and allow to hang down
12	Remove front section of roof lining (1)	Helper required.
	Replace
13	Modify lamps (9)
14	Modify microphones (10)
15	Modify electrical wiring harness (8) of front section of roof lining (1)
16	Install in the reverse order
