Remove/Install Rear Switching Module - AR80.61-P-0011LF

Model 217

with CODE P17 (KEYLESS-GO package)

Model 222

with CODE P17 (KEYLESS-GO package)

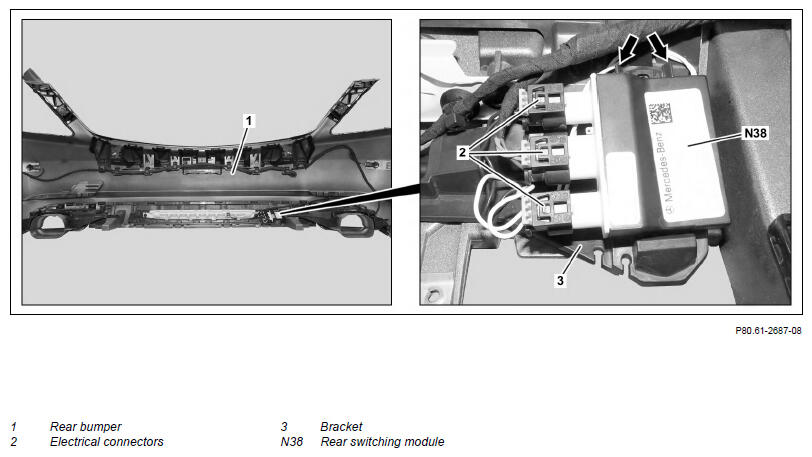

Fig 1: Rear Switching Module Model 222 With Code P17 (Shown On Model 222.004)

Courtesy of MERCEDES-BENZ USA

Shown on Model 222.004

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear bumper (1)	MODEL 217	AR88.20-P-2200LC
		MODEL 222	AR88.20-P-2200LF
2	Separate electrical connectors (2)
3	Press catch hook (arrows) apart and unclip rear switching module (N38) from bracket (3) and remove
4	Install in the reverse order
