Remove/Install Rear Bumper - AR88.20-P-2200LF

Model 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018 with code M002 (Engines with exhaust gas turbocharger with charge air cooling)

Shown on model 222 from model year 2018

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove charger feed socket flap	Model 222.163/173
			AR54.10-P-5110LFH
2	Remove rear lamps units		AR82.10-P-4905LF
3	Remove rear center assembly trim		AR68.30-P-4600LF

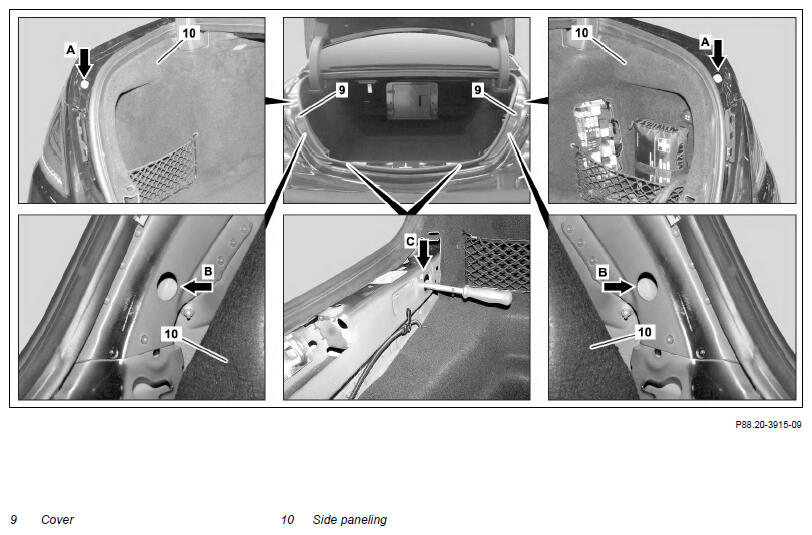

4	Remove left and right cover (9)

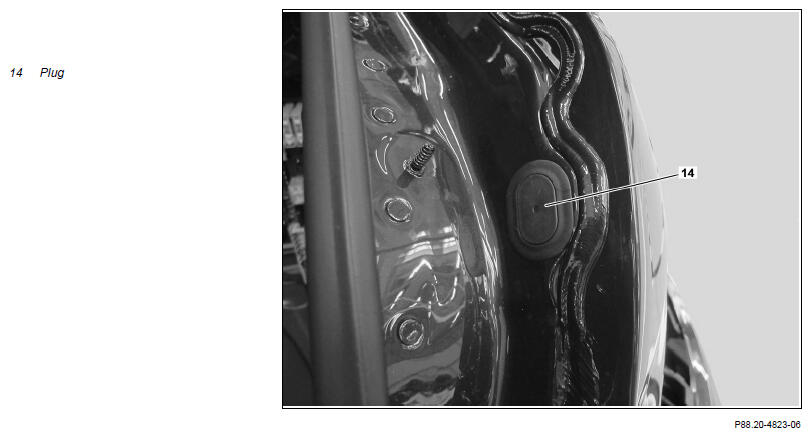

5	Remove left and right stop plug (14)
6	Unscrew screws of bumper (1) through the openings (arrows A)
7	Release left and right side trim (10) and push to one side		AR68.30-P-4600LF
8	Unscrew nuts of bumper (1) through the openings (arrows B and C)
9	Detach underfloor paneling at rear	Loosen underfloor paneling at rear until bolts (8) are accessible.	AR61.30-P-1001LF

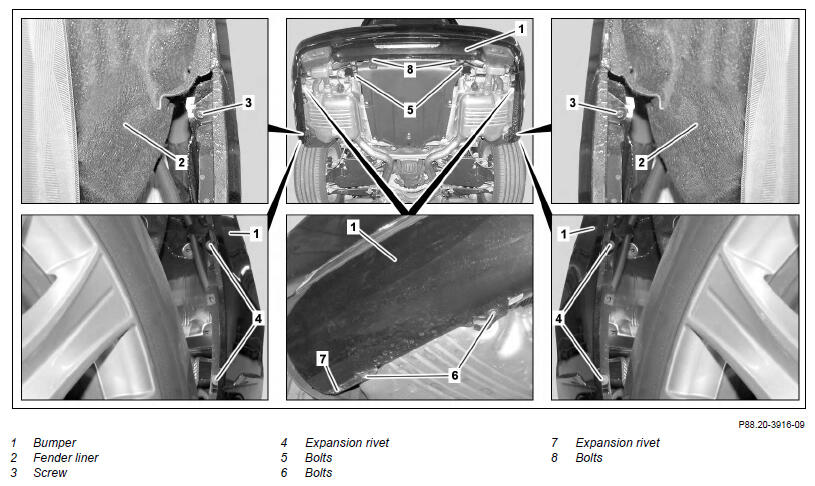

10	Unscrew screws (5, 8)

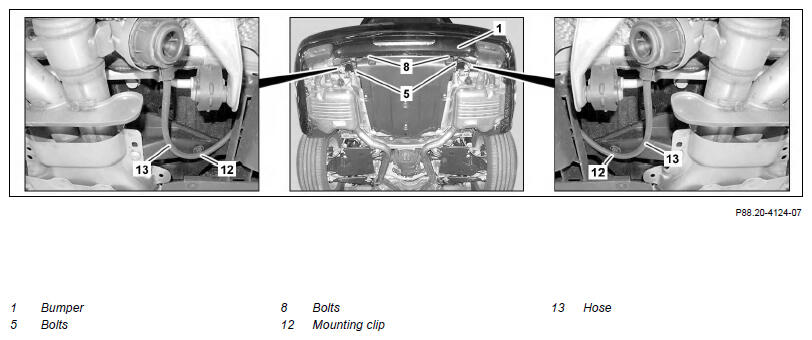

11	Unclip retaining clip (12) with hose (13)	Model 222 with code M002 (Engines with turbocharger with charge air cooling)
12	Detach left and right fender liner (2) and push toward side		AR88.10-P-1400LF
13	Remove bolts (3)

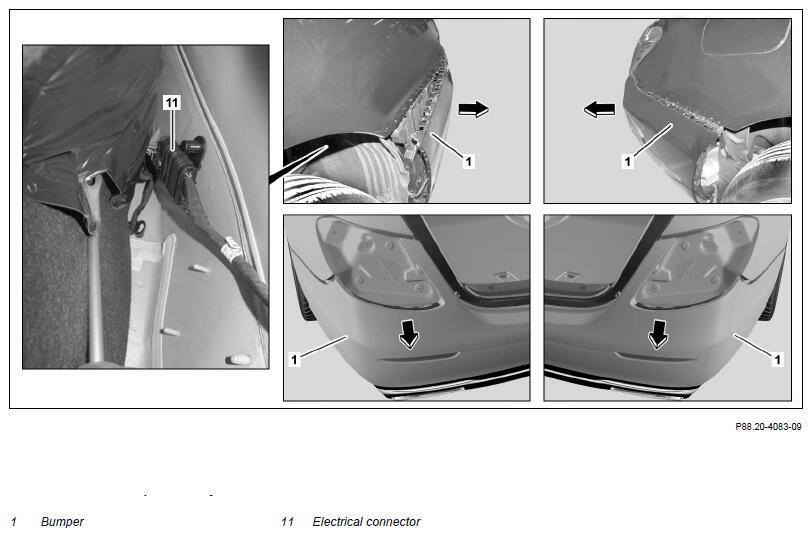

14	Disconnect electrical connections (11) and unclip wiring harness	The number of electrical connectors (11) varies depending on the equipment.
15	Remove expansion rivets (4, 7)
16	Remove bolts (6)
17	Unclip bumper (1) from left and right rear wheel arches
18	Unclip bumper (1) from rear fenders and in area of rear lamp units	Helper required.
19	Remove bumper (1)	Helper required.
20	Install in the reverse order
	Check
21	Check whether active parking assist is ready for operation	Model 222 with code 235 (Active Parking Assist with PARKTRONIC) Switch on ignition, switch on active parking assist, engage reverse gear and release parking brake. Active Parking Assist performs a self-test, the warning displays signal operational readiness.
22	Check whether blind spot assist is ready for operation	Model 222 with code 237 (Active Blind Spot Assist) Switch on ignition. The operation and warning indicators in the outside mirrors illuminate red and then yellow.
