Overview Of System Components, Active Body Control (ABC) - GF32.50-P-9997LF

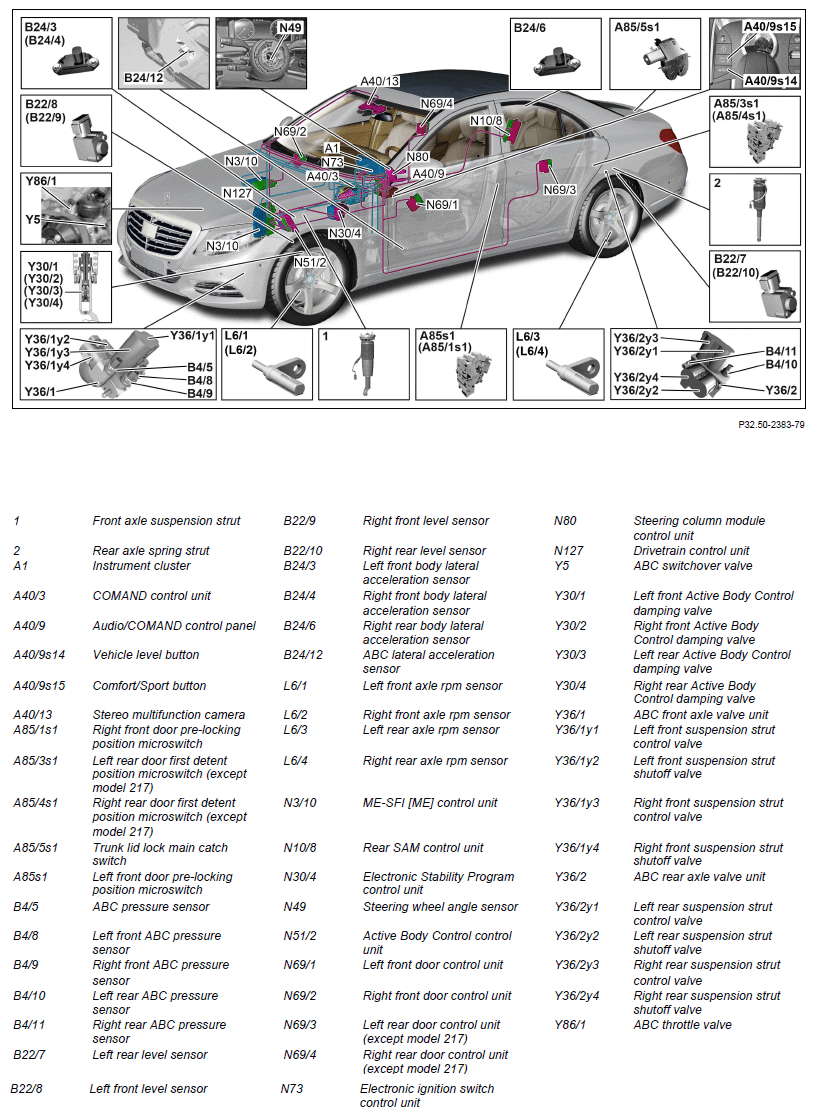

Model 217, 222 With Code 487 (MAGIC BODY CONTROL)
Shown on model 222 up to model year 2018

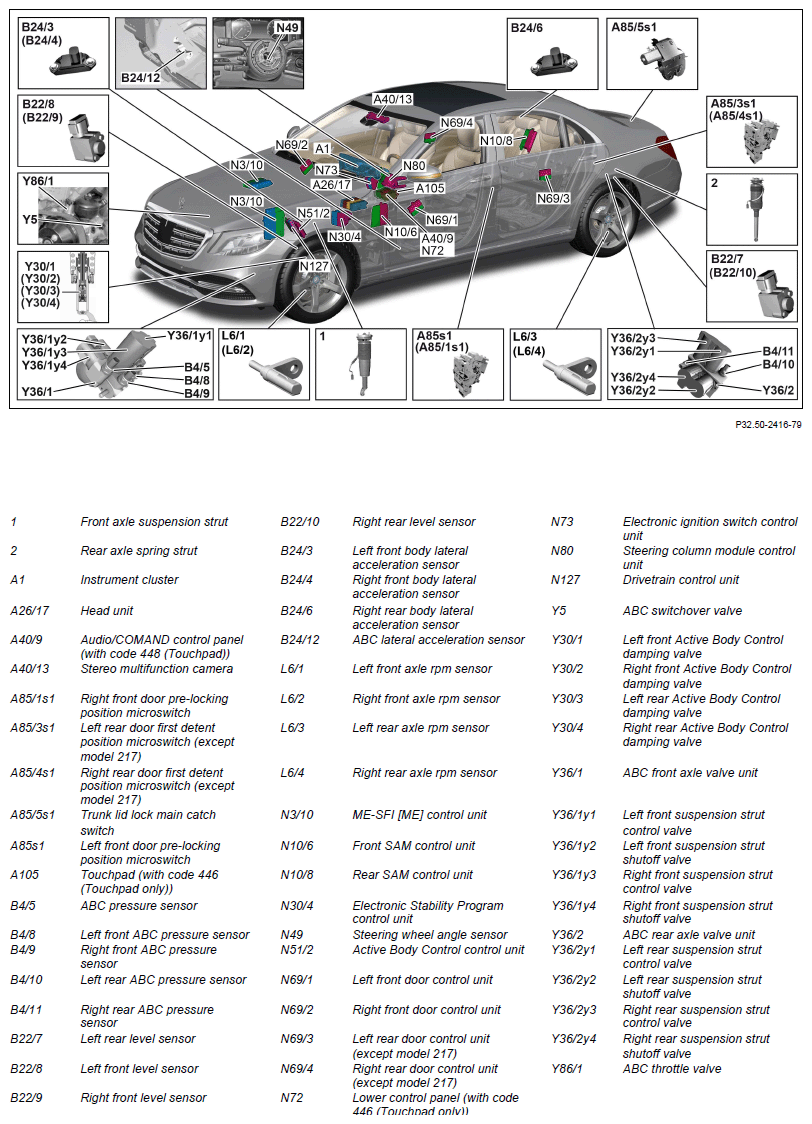

Shown on model 222 as of model year 2018

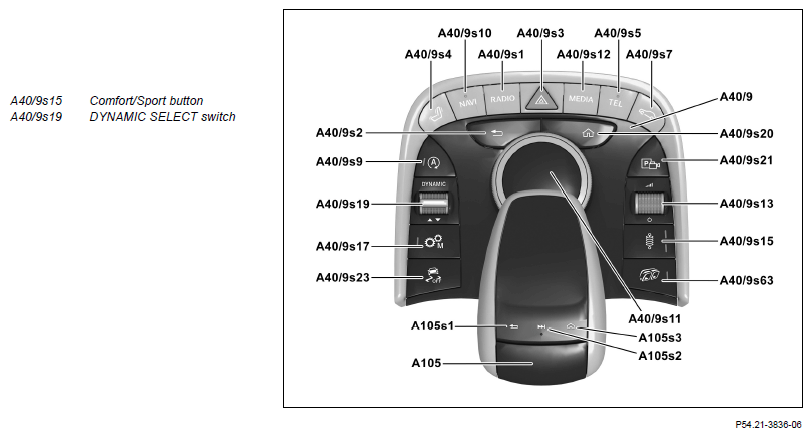

View of Audio/COMAND control panel as of model year 2018 (With Code 448 (Touchpad), with engine 176, 256)

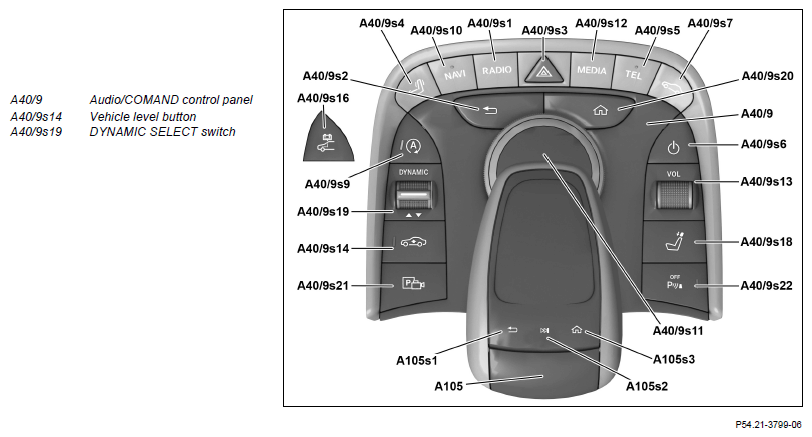

View of Audio/COMAND control panel as of model year 2018 (With Code 448 (Touchpad), with engine 177, 279)

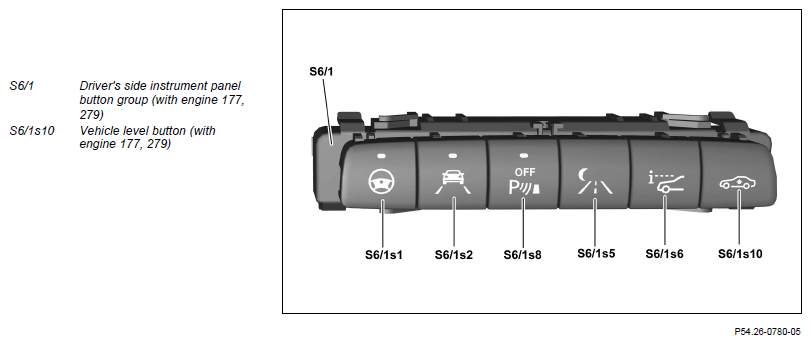

View of driver's side instrument panel button group

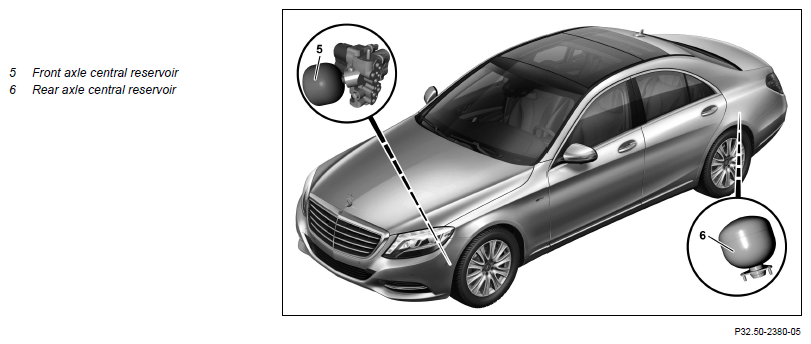

Shown on model 222 up to model year 2018

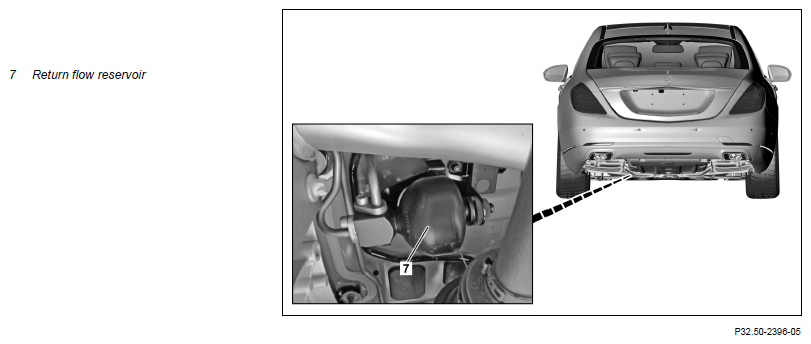

Shown on model 222 up to model year 2018
| Component description for instrument cluster | Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL) A1 | GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL) A1 | GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL) A26/17 | GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL) A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL) A40/9 | GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) with code 487 (MAGIC BODY CONTROL) A40/9 | GF54.21-P-4501LFM | ||
| Component description for multifunction camera | Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL) A40/13 | GF54.21-P-3300LF | |
| Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) with code 487 (MAGIC BODY CONTROL) A40/13 | GF54.21-P-3300LFM | ||
| Touchpad, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) with code 487 (MAGIC BODY CONTROL) A105 | GF54.21-P-4511LF | |
| Component description for ME-SFI (ME) control unit | Model 217 with engine 176.9, 177.9 with code 487 (MAGIC BODY CONTROL) Model 222 with engine 176.9, 177.9 with code 487 (MAGIC BODY CONTROL) N3/10 |
GF07.61-P-6000MNL | |
| Model 217, 222 with engine 157.9, 278.9 with code 487 (MAGIC BODY CONTROL) N3/10 | GF07.61-P-6000MML | ||
| Model 217 with engine 279 with code 487 (MAGIC BODY CONTROL) Model 222 with engine 277, 279 with code 487 (MAGIC BODY CONTROL) N3/10 |
GF07.61-P-6000MUB | ||
| Model 222 with engine 276.9 with code 487 (MAGIC BODY CONTROL) N3/10 | GF07.61-P-6000MMK | ||
| Model 217, 222 with engine 276.8 with code 487 (MAGIC BODY CONTROL) N3/10 | GF07.61-P-6000MMT | ||
| Model 222 with engine 256.9 with code 487 (MAGIC BODY CONTROL) N3/10 | GF07.61-P-6000MRT | ||
| Model 222 with engine 264.9 with code 487 (MAGIC BODY CONTROL) N3/10 | GF07.61-P-6000MRK | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 with code 487 (MAGIC BODY CONTROL) N30/4 | GF42.45-P-5119LF | |
| Model 217, 222 (except 222.173) as of model year 2018 with code 487 (MAGIC BODY CONTROL) N30/4 | GF42.45-P-5119LFM | ||
| Model 222.173 as of model year 2018 with code 487 (MAGIC BODY CONTROL) N30/4 | GF42.45-P-5119LFA | ||
| Model 222.004/057/104/157/163 up to model year 2018 with code 487 (MAGIC BODY CONTROL) N30/4 | GF42.45-P-5119LFH | ||
| ABC control unit, component description | N51/2 | GF32.50-P-4501LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 with code 487 (MAGIC BODY CONTROL) N693, N694 | GF72.29-P-6021LF | |
| Lower control panel, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) with code 487 (MAGIC BODY CONTROL) N72 | GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL) N80 | GF54.21-P-6051LF | |
| Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL) N80 | GF54.21-P-6051LFM | ||
| Drivetrain control unit, component description | Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 with code 487 (MAGIC BODY CONTROL) 217, 222 with engine 176.9 with code 487 (MAGIC BODY CONTROL) 217, 222 with engine 177.9 with code 487 (MAGIC BODY CONTROL) 222 with engine 256.9 with code 487 (MAGIC BODY CONTROL) Model 222 with engine 264.9 with code 487 (MAGIC BODY CONTROL) N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 with code 487 (MAGIC BODY CONTROL) Model 222.163/173 with engine 276.8 with code 487 (MAGIC BODY CONTROL) N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 with code 487 (MAGIC BODY CONTROL) N127 | GF54.21-P-2141OGS | ||
| Model 222 with engine 656.9 with code 487 (MAGIC BODY CONTROL) N127 | GF54.21-P-2141OIA | ||
| Model 222 with engine 651.9 with code 487 (MAGIC BODY CONTROL) N127 | GF54.21-P-2141OLA | ||
| Table of contents for function description of Active Body Control (ABC) | GF32.50-P-0999LF |
