Remove/Install Hydraulic Valve Clearance Compensating Elements - AR05.00-P-2011MNL
Engine 176 in model 217, 222
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove respective camshafts | Camshafts of right cylinder bank | AR05.20-P-6994MNL |
| Camshafts of left cylinder bank | AR05.20-P-6993MNL | ||

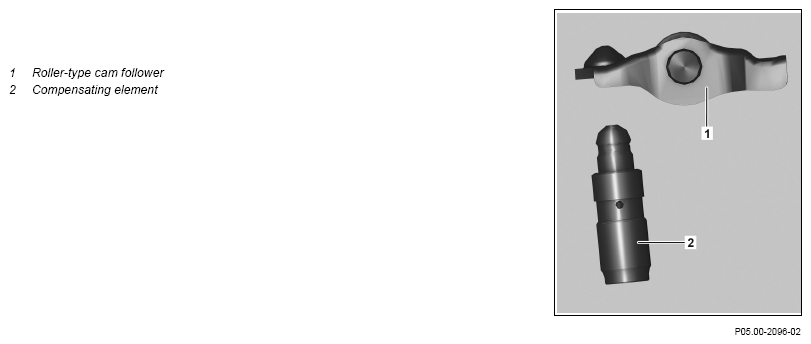

| 2 | Mark roller cam followers (1) and compensating elements (2) relative to respective cylinder | On reuse of roller cam followers (1) and compensating elements (2). On reuse of roller cam followers (1) and compensating elements (2), these must be installed in original installation location. Engine damage will occur otherwise. |
|
| 3 | Remove roller cam followers (1) and compensating elements (2) from cylinder head | ||
| 4 | Detach compensating elements (2) from roller-type cam followers (1) | ||
| 5 | Install in the reverse order |
