Remove/Install Radar Sensors Control Unit - AR54.65-P-0040LF
Model 222
With Code 233 (DISTRONIC PLUS)

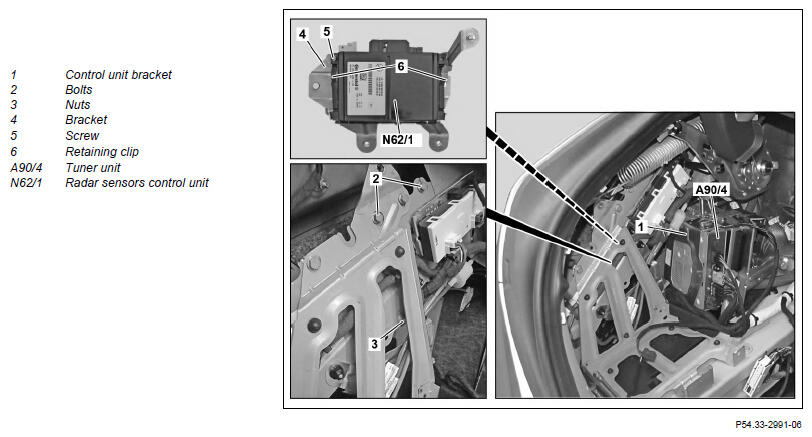

View of trunk left side
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove left luggage compartment trim | MODEL 222 | |
| MODEL 222.0/1 | AR68.30-P-4600LF | ||
| 3 | Remove rear bass speaker (H4/38) | MODEL 222 with CODE 811 (Advanced sound system) | |
| 4 | Remove tuner unit (A90/4) | If installed | |
| 5 | Loosen control unit bracket (1) | ||
| 6 | Disconnect electrical connectors of control units in control unit bracket (1) and place control unit bracket (1) to one side | ||
| 7 | Remove screws/bolts (2) | ||
| 8 | Unscrew nut (3) and remove radar sensors control unit (N62/1) with bracket (4) | ||
| 9 | Disconnect electrical connectors from radar sensors control unit (N62/1) | ||
| 10 | Unscrew nuts (5) and remove radar sensors control unit (N62/1) from bracket (4) | ||
| 11 | Install in the reverse order | ||
| 12 | Perform initial startup of radar sensors control unit (N62/1) using diagnostic system | ||
| AD00.00-P-2000-04B |
