Remove Paneling In Trunk - AR68.30-P-4600LF
Model 222
MODIFICATION NOTES
| 13.09.2017 | Safety note changed. | AS00.00-Z-0009-01A | |
| 13.09.2017 | Operation step sequence changed. | Operation steps 12 to 24. | |
| 17.10.2017 | Method modified. | Operation steps 16 to 19. |

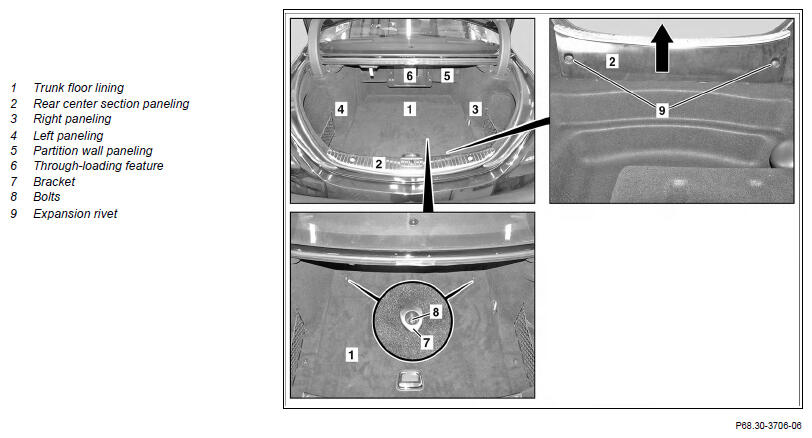

Shown on model 222 with code 282 (Ski and snowboard bag)

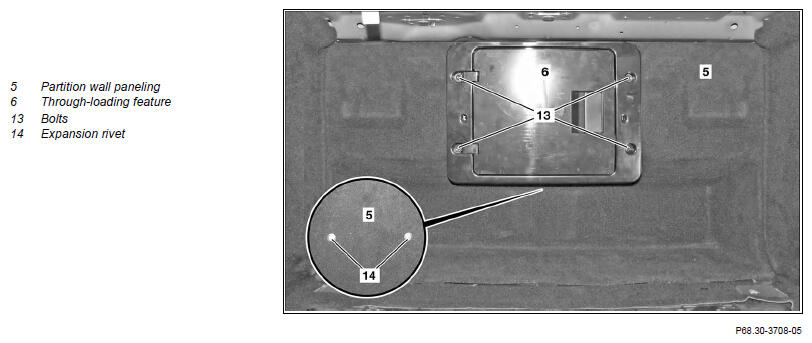

Shown on model 222 with code 282 (Ski and snowboard bag)

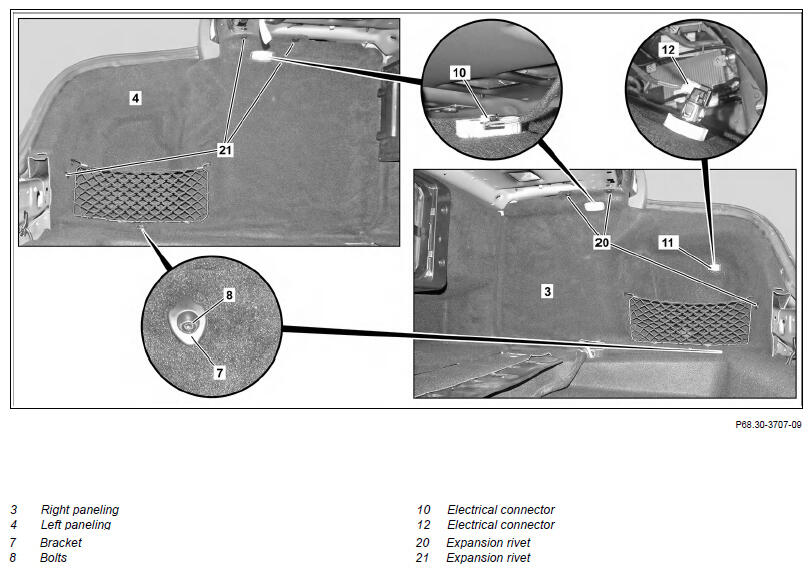

Shown on model 222 with code 282 (Ski and snowboard bag)

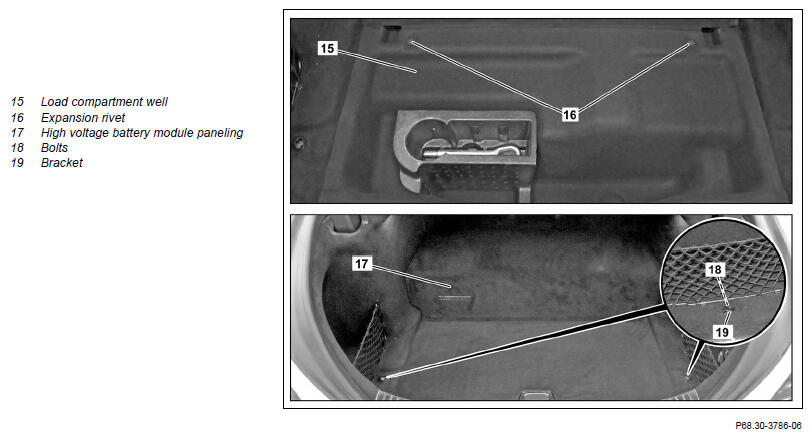

Shown on model 222 (with CODE ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUG-IN)))

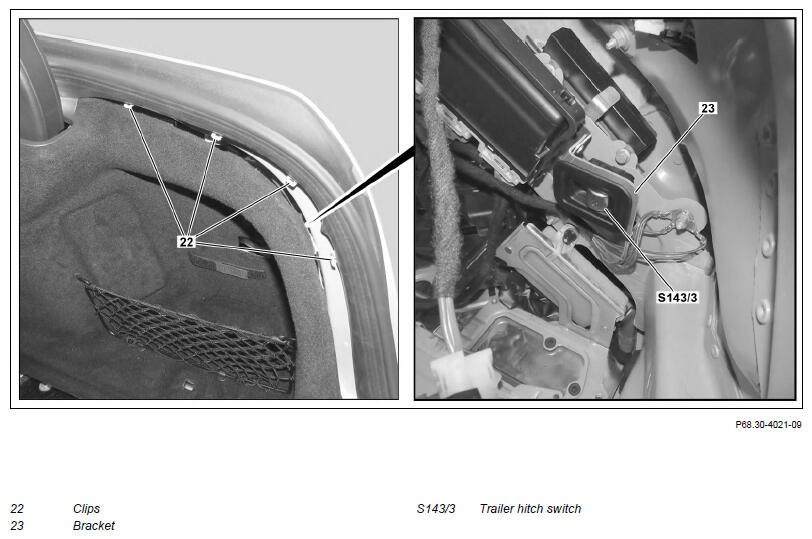

Shown on model 222 with code (550) (Trailer hitch)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid | ||
| 2 | Remove refrigeration compartment in trunk | Model 222 with code 308 (Refrigerated compartment in rear passenger compartment) |
|
| 3.1 | Remove screws (8) from brackets (7) | Model 222.0/9, 222.1 (except 222.163) | |
| 3.2 | Remove screws (18) from brackets (19) | Model 222.163/173 | |
| 4 | Remove trunk floor lining (1) | ||
| 5 | Remove expansion rivets (16) | ||
| 6 | Remove toolbox from load compartment well (15) | ||
| 7 | Remove load compartment well (15) | ||
| 8 | Remove expansion rivets (9) | ||
| 9 | Unclip rear center section paneling (2) upward | ||
| 10.1 | Remove expansion rivet (14) from partition wall panel (5) | Model 222 except code 282 (Ski and snowboard bag) except code 308 (Refrigerated compartment in rear passenger compartment) |
|
| 10.2 | Remove screws (13) and remove through-loading feature (6) | Model 222 with code 282 (Ski and snowboard bag) with code 308 (Refrigerated compartment in rear passenger compartment) |
|
| 11 | Remove partition wall panel (5) | ||
| 12 | Remove expansion rivet (21) from left paneling (4) | ||
| 13 | Loosen left paneling (4) | ||
| 14 | Disconnect electrical connection (10) | ||
| 15 | Remove left paneling (4) | ||
| 16 | Remove expansion rivet (20) from right paneling (3) | ||
| 17 | Unhook right paneling (3) from the clips (22) | Model 222.0/1 with code 550 (Trailer coupling) |
|
| 18 | Reach behind the right paneling (3), unclip panel with the trailer hitch switch (S143/3) from the bracket (23) and press it out of the right paneling (3) | Model 222.0/1 with code 550 (Trailer coupling) |
|
| 19 | Disconnect electrical connector from trailer hitch switch (S143/3) | Model 222.0/1 with code 550 (Trailer coupling) |
|
| 20 | Loosen right paneling (3) | ||
| 21 | Disconnect Electrical connections (10) | ||
| 22 | Disconnect electrical connections (12) | ||
| 23 | Remove right paneling (3) | ||
| 24 | Remove high voltage battery module paneling (17) | Model 222.163/173 | |
| 25 | Install in the reverse order |
