Remove/Install Parking System Speaker - AR54.65-P-0034LF

Model 222

With Code 235 (Active Parking Assist)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear shelf.		AR68.30-P-4580LF

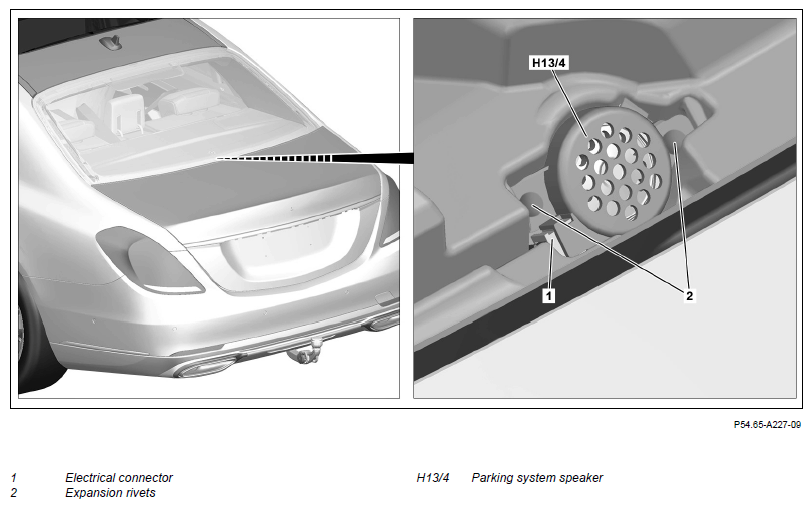

2	Release electrical connector (1) and disconnect.
3	Remove expansion rivets (2) and remove parking system speaker (H13/4).	Dismantling tool	Fig 1
4	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
