Remove/Install Parking System Control Unit - AR54.65-P-0018LFM
Model 222
as of model year 2018
With Code 235 (Active Parking Assist with PARKTRONIC)
Model 222
as of model year 2018
With Code 501 (360° camera)
Shown On model 222 With Code 811 (Advanced sound system), With Code 865 (TV tuner) and With Code 501 (360° camera)
Shown with hidden left side wall
Shown in removed condition
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of parking system control unit (N62) | When replacing parking system control unit (N62). | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove left luggage compartment lining | AR68.30-P-4600LF | |
| 4 | Remove woofer | Model 222 as of model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) with code 811 (Advanced sound system) Model 222 as of model year 2018 with code 501 (360° camera) with code 811 (Advanced sound system) |
|
| AR82.62-P-7839LF | |||
| 5 | Remove the TV tuner control unit (N143) | Model 222 as of model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) with code 865 (TV tuner) Model 222 as of model year 2018 with code 501 (360° camera) with code 865 (TV tuner) |
|
| Model 222 as of model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) with code 498 (Japanese version) with code 865 (TV tuner) Model 222 as of model year 2018 with code 498 (Japanese version) with code 501 (360° camera) with code 865 (TV tuner) |
AR82.85-P-7366LFN | ||
| Model 222 as of model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) with code 865 (TV tuner) except code 498 (Japanese version) Model 222 as of model year 2018 with code 501 (360° camera) with code 865 (TV tuner) except code 498 (Japanese version) |
AR82.85-P-7366LFM | ||

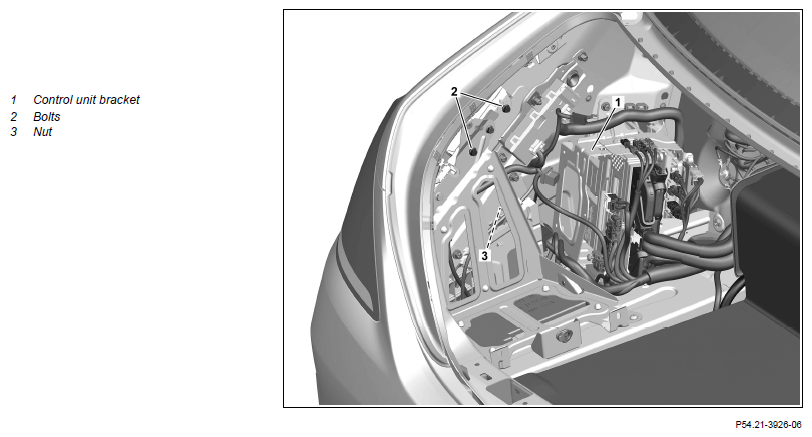

| 6 | Loosen control unit bracket (1) | ||
| 7 | Disconnect all electrical connectors from control units and antenna splitters in and on the control unit bracket (1) and place the control unit bracket (1) to one side | ||
| 8 | Unscrew bolts (2) | ||

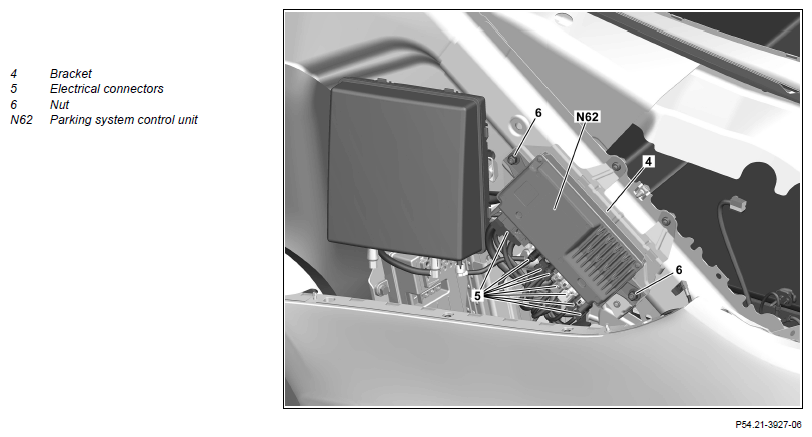

| 9 | Unscrew nut (3) and remove parking system control unit (N62) with holder (4) until electrical connectors (5) are accessible | ||
| 10 | Disconnect electrical connectors (5) from parking system control unit (N62) | ||
| 11 | Remove parking system control unit (N62) with holder (4) from vehicle | ||

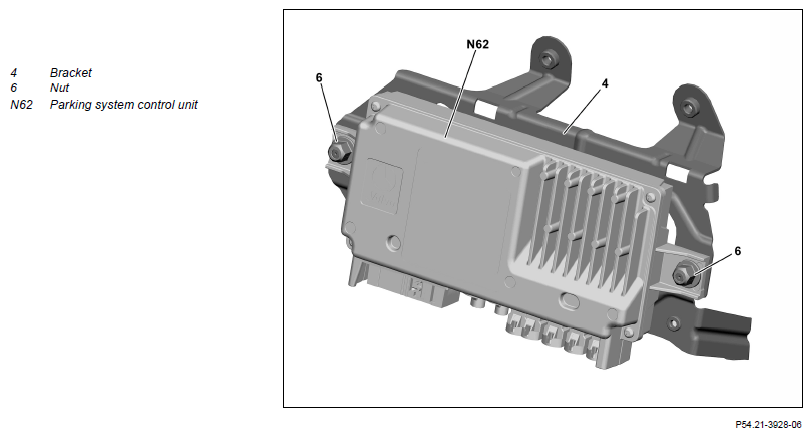

| 12 | Unscrew nuts (6) and remove parking system control unit (N62) from holder (4) | When replacing parking system control unit (N62). | |
| 13 | Install in the reverse order | ||
| 14 | Calibrate all cameras in the 3600 camera system using vehicle diagnosis system | Model 222 as of model year 2018 with code 501 (360° camera) When replacing parking system control unit (N62). |
|
| AD00.00-P-2000-04B |
