Remove/Install Park Pawl Capacitor - AR54.10-P-1126LC
Model 217.3
Model 222
MODIFICATION NOTES
| 15.07.2016 | Work procedure for model 222 changed. | Steps 2 and 3 |

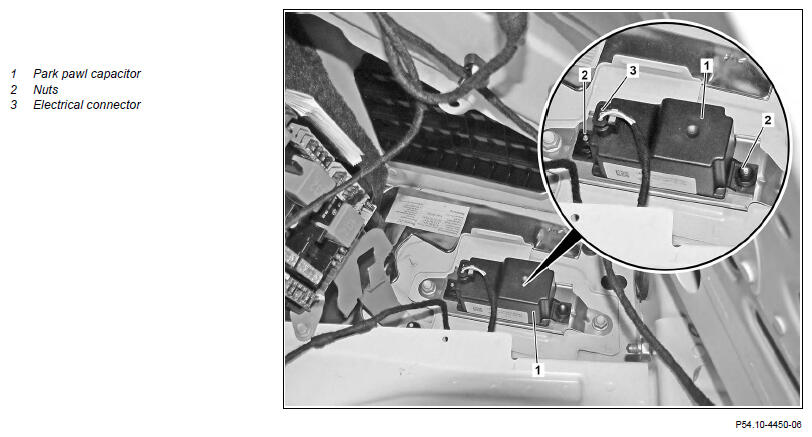

Shown On model 217.3
Model 222
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove the RH panel in the trunk | Model 222.0/1/9 | AR68.30-P-4600LF |
| Model 217.3 | AR68.30-P-4600LC | ||

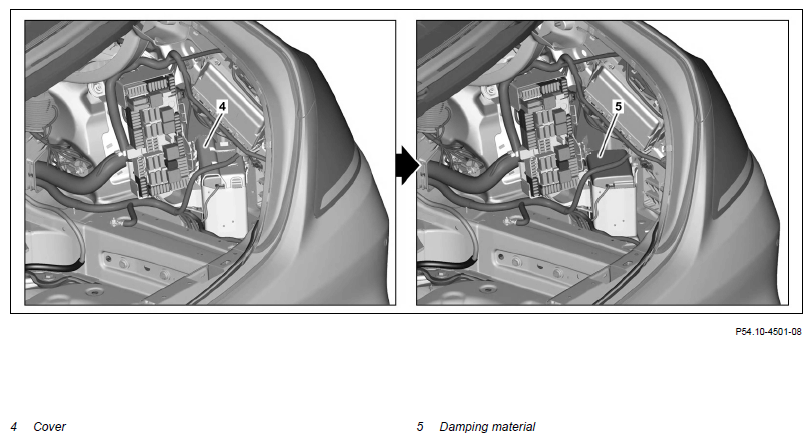

| 2 | Remove cover (4) | Model 222 | |
| 3 | Remove soundproofing (5) with park pawl condenser (1) and expose park pawl condenser (1) | Model 222 | |
| 4 | Release and disconnect electrical connection (3) on park pawl condenser (1) | ||
| 5 | Unscrew nuts (2) | Model 217.3 | |
| 6 | Remove park pawl capacitor (1) | ||
| 7 | Install in the reverse order |
