Remove/Install Battery Sensor - AR54.10-P-0002LFM

Model 222.058/059/060/158/159/160/169

Model 222.083/086/183/186/983/986

With Code 810 (Premium sound system)

Model 222.176

except code Z07 (B7 armoring on special protection version)

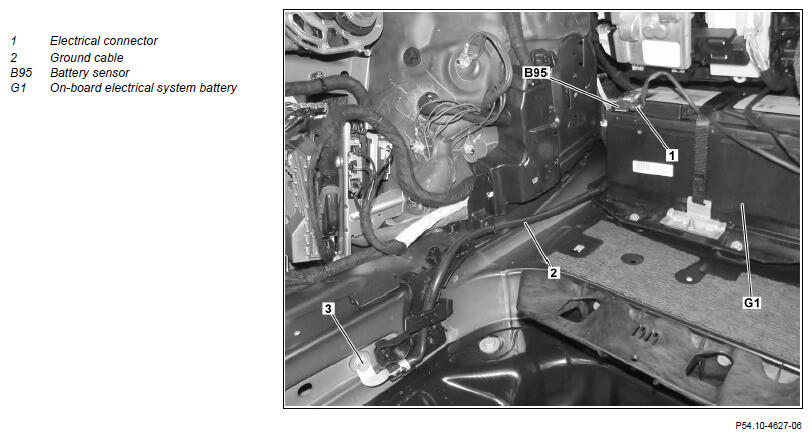

Fig 1: Battery Sensor Components Location - Model 222.183/186 With Code 810

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove partition wall panel		AR68.30-P-4600LF
2	Disconnect ground line (2) from on-board electrical system battery (G1)		AR54.10-P-0003LF
3	Disconnect electrical connector (1) from battery sensor (B95)
4	Loosen nut of battery sensor (B95)	Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1003-01J
5	Expose ground line (2)	Replace damaged fasteners.
6	Remove ground line (2) with battery sensor (B95) from trunk	The ground line (2) and battery sensor (B95) are a component part and cannot be replaced individually.
7	Install in the reverse order
