Remove/Install 360° Camera Control Unit - AR54.30-P-3004LF
Model 222
up to model year 2018
With Code 501 (360° camera)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission 3600 camera control unit (N148) | When replacing 3600 camera control unit (N148). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove left luggage compartment lining | AR68.30-P-4600LF | |
| 4 | Remove woofer | Model 222 up to model year 2018 with code 501 (360° camera) with code 811 (Advanced sound system) |
AR82.62-P-7839LF |
| 5 | Remove tuner unit (A90/4) | Model 222 up to model year 2018 with code 501 (360° camera) with code 536 (SIRIUS satellite radio) Model 222 up to model year 2018 with code 501 (360° camera) with code 537 (Digital radio (DAB)) Model 222 up to model year 2018 with code 501 (360° camera) with code 865 (TV tuner) |
AR82.60-P-2002LF |

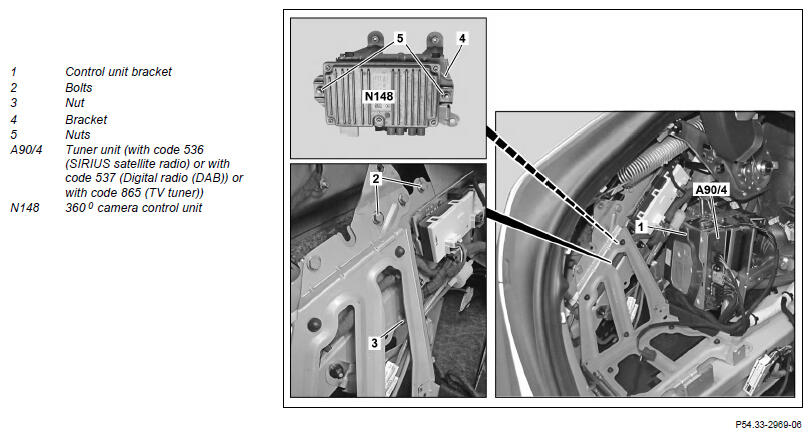

| 6 | Loosen control unit bracket (1) | ||
| 7 | Disconnect electrical connectors of control units in control unit bracket (1) and place control unit bracket (1) to one side | ||
| 8 | Unscrew bolts (2) | ||
| 9 | Unscrew nut (3) and remove 360° camera control unit (N148) with holder (4) | ||
| 10 | Disconnect electrical connectors from 360° camera control unit (N148) | ||
| 11 | Unscrew nuts (5) and remove 360° camera control unit (N148) from holder (4) | ||
| 12 | Install in the reverse order | ||
| 13 | Calibrate all cameras in the 360 Degree camera system using vehicle diagnosis system | When replacing 360 Degree camera control unit (N148). | |
| AD00.0P-P-2000-04B |
