Remove/Install 12 Volt Socket - AR54.10-P-1000LF
Model 222
Vehicle interior socket, front (X58/17)
Socket 12V (X58/40)
Luggage compartment socket (X58/12)
| Remove/install vehicle interior socket, front (X58/17) | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove storage compartment (1) | ||
| 3 | Tape up lining edge of stowage compartment (1) with a sturdy adhesive tape (2) as shown | ||
| 4 | Unclip connector (3) on the rear of the stowage compartment (1) | ||
| 5 | Unclip electrical wiring harness (4) from line bracket (5) on stowage compartment (1) | ||
| 6 | Open flap (6) at vehicle interior socket, front (X58/17) | ||
| 7 | Unlatch vehicle interior socket, front (X58/17) with the pliers (7) and pull out until the electrical connector (8) is accessible | Fig 1 | |
| 8 | Detach electrical connector (8) and remove vehicle interior socket, front (X58/17) | ||
| 9 | Installation of vehicle interior socket, front (X58/17) in reverse order | ||

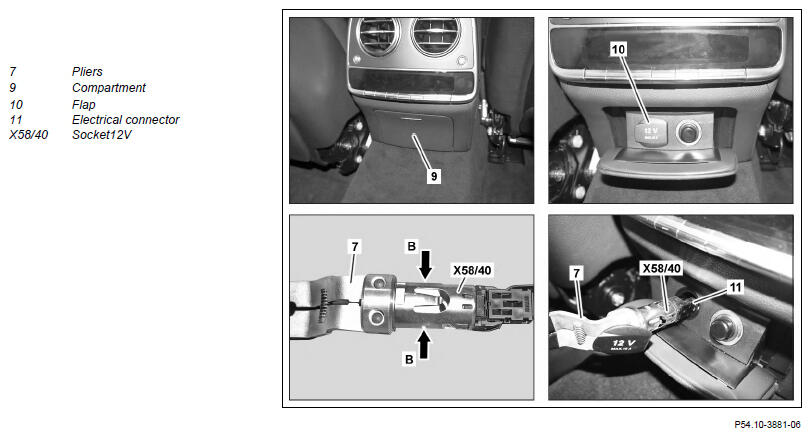

| Remove/install socket 12V (X58/40) | |||
| 10 | Switch off ignition and remove transmitter key | ||
| 11 | Open compartment (9) | ||
| 12 | Open flap (10) | ||
| 13 | Detach socket 12V (X58/40) with the pliers (7) and pull out until the electrical connector (11) is accessible | Fig 1 | |
| 14 | Disconnect electrical connector (11) and remove socket 12V (X58/40) | ||
| 15 | Installation of socket 12V (X58/40) in reverse order | ||
| Remove/install luggage compartment socket (X58/12) | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| 16 | Switch off ignition and remove transmitter key | ||
| 17 | Open luggage compartment lid | ||

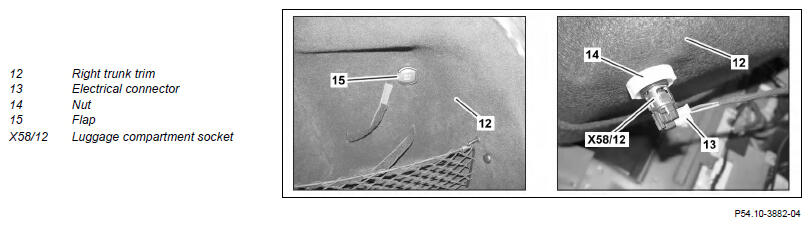

| 18 | Loosen luggage compartment lining, right (12) until the luggage compartment socket (X58/12) is accessible from behind | MODEL 222.0/1/9 | AR68.30-P-4600LF |
| 19 | Disconnect Electrical connection (13) | ||
| 20 | Unscrew nut (14) and remove luggage compartment socket (X58/12) from the luggage compartment lining, right (12) | ||
| 21 | Installation of the luggage compartment socket (X58/12) in reverse order |
