Remove/Install Shoulder Cushion In Rear - AR91.12-P-1712LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
| Remove/install | |||

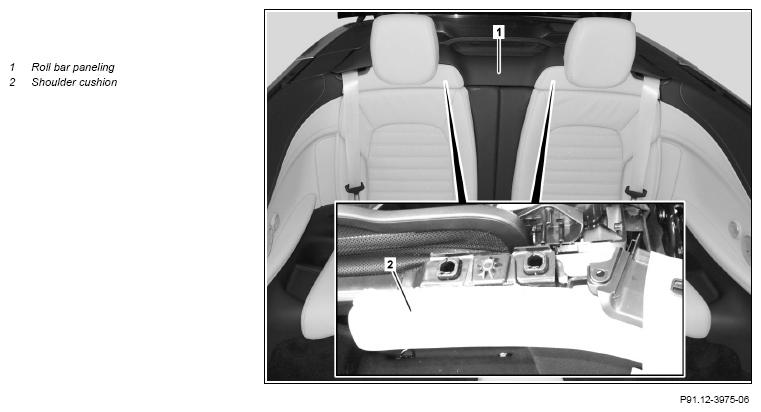

| 1 | Remove roll bar paneling (1) | AR68.30-P-1380LWR | |
| 2 | Take off left or right shoulder cushion (2) | ||
| 3 | Install in the reverse order |
