Remove/Install Interior Paneling On Roll Bar - AR68.30-P-1380LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
Shown on model 205.4
Shown on model 205.4 with code 235 (Active Parking Assist with PARKTRONIC)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||
| 1 | Cover both rear fenders | ||
| 2 | Unlock backrest in rear | ||
| 3 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 4 | Completely open right and left side window in rear | ||

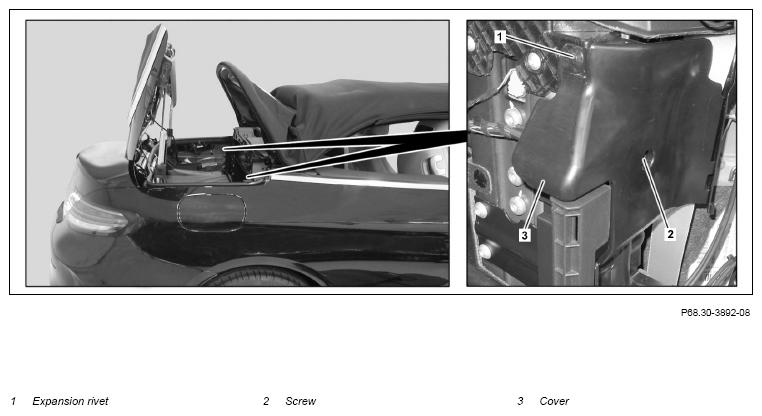

| 5 | Remove expansion rivet (1) on right and left side of vehicle | ||
| 6 | Unscrew bolts (2) on right and left side of vehicle | ||
| 7 | Remove covers (3) o right and left side of vehicle | ||
| 8 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 9 | Remove both head restraints in rear | AR91.16-P-1770LWR | |

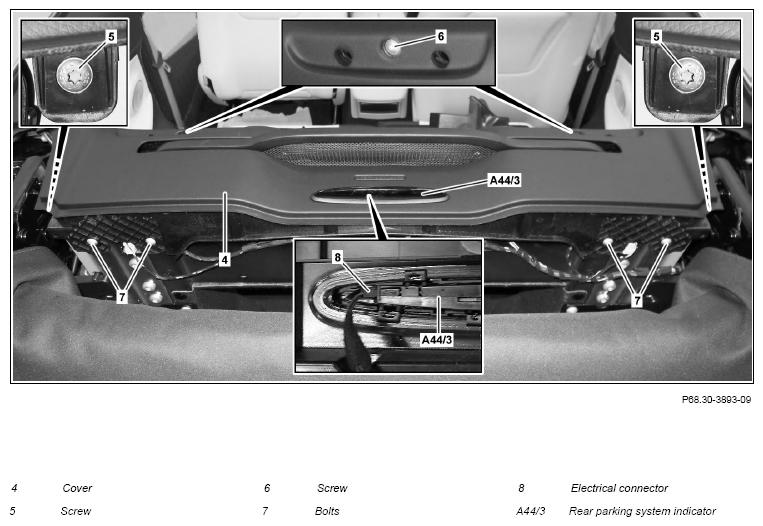

| 10 | Remove screw/bolts (5, 6, 7) | ||
| 11 | Unclip paneling (4) upward and turn | ||
| 12 | Disconnect electrical connector (8) from rear parking system display (A44/3) and remove paneling (4) | Model 205.4 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 13 | Remove rear parking system display (A44/3) from paneling (4) | Model 205.4 with code 235 (Active Parking Assist with PARKTRONIC) When replacing paneling (4). |
|
| 14 | Install in the reverse order |
