Remove/Install Rear Cover On Center Console - AR68.20-P-2358LW

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213, 238

Model 253

Model 293

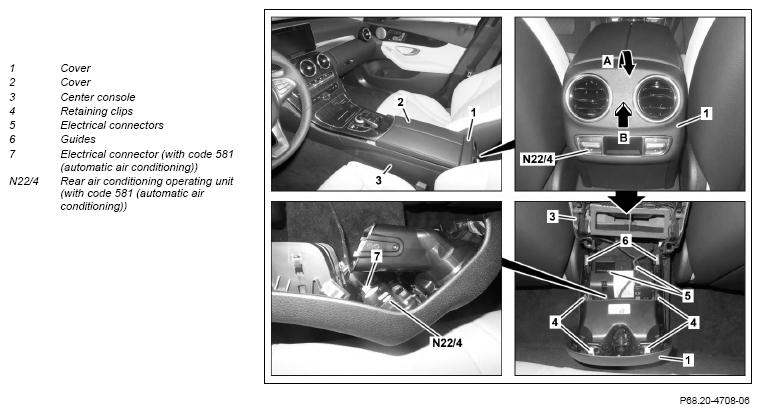

Shown on model 205

Courtesy of MERCEDES-BENZ USA

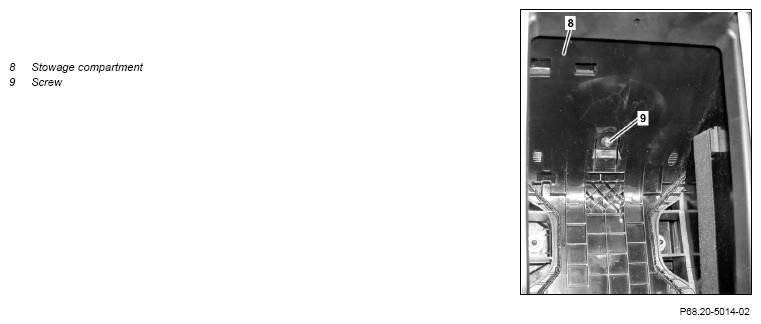

Model 213 (except 213.1), 238 with transmission 725

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Switch off ignition.	Model 205, 213, 238, 253, 293 except code U67 (230 V socket in interior compartment) except code U80 (115 V socket)
1.2	Disconnect ground line from battery	Model 205, 213, 238, 253, 293 with code U67 (230 V socket in interior compartment) Model 205, 213, 238, 253, 293 with code U80 (115 V socket) Model 238 with code U67 (230 V socket in interior compartment)	AR54.10-P-0003LWO
		Model 238 with code U80 (115 V socket) Model 205, 213, 253 with code U67 (230 V socket in interior compartment)	AR54.10-P-0003LW
		Model 205, 213, 253 with code U80 (115 V socket) Model 293 with code U67 (230 V socket in interior compartment) Model 293 with code U80 (115 V socket)	AR54.10-P-0003EQ
2.1	Open cover (2) on center console (3).	Model 205, 213 (except 213.1), 238, 253, 293
2.2	Disengage seat cushion in the rear passenger compartment at the front, lift, and remove stowage box/tray between the seat cushion and center console (3).	Model 213.1 Model 213.1 except code 248 (Rear seat with integrated child seat)	AR91.12-P-1020LW
3	Place cover in stowage compartment (8) of center console (3) to one side and remove screw (9).	Model 213 (except 213.1), 238 with transmission 725
4	Unclip cover (1) at the top from the center console (3) (arrow A).	: Ensure that retaining clips (4) arrest securely.
5	Move cover (1) upward toward the rear out of the center console (3) (arrow B) at an angle of approx. 45°.	: Install cover (1) into center console (3) together with guides (6).
6	Disconnect electrical connectors (5).	The number varies according to the vehicle equipment.
7	Disconnect electrical connector (7) at rear climate control operating unit (N22/4).	Model 205, 213, 238, 253, 293 with code 581 (Automatic air conditioning)
8	Install in the reverse order
