Disconnect/Connect Battery Ground Line - AR54.10-P-0003LW

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 253

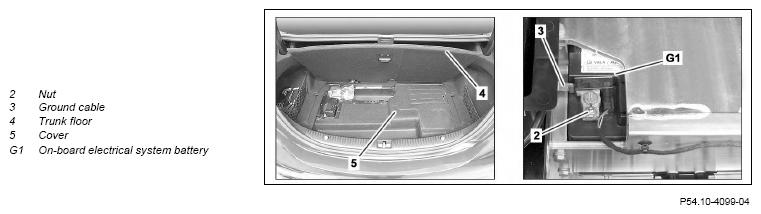

Shown on model 213 except code B01 (48V technology)

Courtesy of MERCEDES-BENZ USA

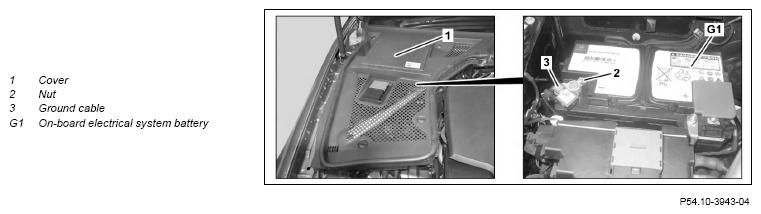

Shown on model 205.386 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) up to model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Disconnect, connect
1	Open hood.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).	All electrical consumers must be switched off. Otherwise they or the on-board electrical system battery (G1) may be damaged when disconnecting/connecting the ground line (3).
3.1	Expose on-board electrical system battery (G1) in trunk or load compartment.	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code B01 (48V technology) Model 205.012/047/147/212/247 Model 205.08/38 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 253 with code B01 (48V technology)
3.2	Remove cover (1) and expose on-board electrical system battery (G1).	Model 205 (except 205.012/013/047/053/054/08/147/212/213/247/253/38) except code B01 (48V technology) Model 205.013/053/054/213/253 Model 205.08/38 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) except code B01 (48V technology) Model 213, 253 except code B01 (48V technology)
		Model 205 (except 205.012/013/047/053/054/08/147/212/213/247/253/38) except code B01 (48V technology) Model 205.013/053/054/213/253 Model 205.08/38 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) except code B01 (48V technology)	AP83.00-P-8381B
		Model 213, 253 except code B01 (48V technology)	AP83.00-P-8381C
4	Disconnect charger of on-board electrical system battery (G1).	When an external charger is connected.
5	Disconnect diagnostic unit.	If a diagnostic device is connected.
			AD00.00-P-2000-04B
6	Undo nut (2) and remove ground line (3) from negative pole of on-board electrical system battery (G1).	Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1004-01A
7	Using a diode test lamp, check on-board electrical system for voltage between positive line of on-board electrical system battery (G1) and disconnected ground line (3).	Model 205.012/013/047/053/054/147/212/213/247/253 Model 213.016/050/053/054/216 Model 253.311/353/354/911/953/954 If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. If the diode test lamp lights up, ↓ Detach ground line from additional battery and check the on-board electrical system after completing the work.
		Model 205.012/013/047/053/054/147/212/213/247/253 Model 253.311/353/354/911/953/954	AR54.10-P-0007LW
		Model 213.016/050/053/054/216	AR54.10-P-0007LHV
8	Connect in reverse order.
	Check
9	Check time display.	In the event of a problem, ↓ set proper time.

BATTERY

Number	Designation		Model 205	Model 213
BA54.10-P-1004-01A	Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery	Nm	6	6

BATTERY

Number	Designation		Model 253
BA54.10-P-1004-01A	Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery	Nm	6
