Disconnect/Connect Battery Ground Line - AR54.10-P-0003ME

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.

Model 167

G14791135Courtesy of MERCEDES-BENZ USA
DANGER Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC. No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
Topical note  General information on vehicles with high-   AH00.00-Z-0300-01A
  voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment
Topical note  Notes on battery   AH54.10-P-0001-01A
  Disconnect, connect
1 Open hood and close charging cable connector of high-voltage on-board electrical system and wait 30 s until power-down is complete. Model 167.117/154/317/354
    IMPORTANT If the charging cable connector is connected.

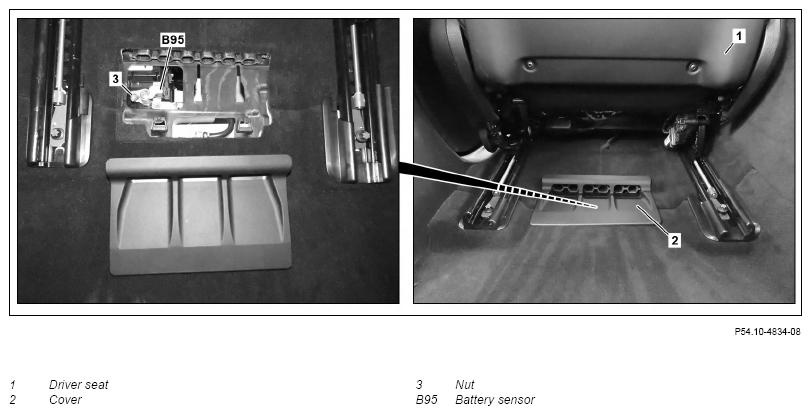

2 Move driver's seat (1) to foremost and uppermost position and set seat backrest to vertical.
3 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
4 Disconnect charger of on-board electrical system battery (G1). When an external charger is connected.
5 Disconnect diagnostic unit. If a diagnostic device is connected.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
6 Remove cover (2).
7 Loosen nut (3), remove battery sensor (B95) with ground line from negative pole of onboard electrical system battery (G1) and place to one side. IMPORTANT The 48 V on-board electrical system switches off 12 V on-board electrical system support 10 s after disconnecting the ground line (3).
    TORQUE SPECIFICATION Battery sensor to negative battery terminal *BA54.10-P-1005-01L
8 Check on-board electrical system for voltage between positive line of on-board electrical system battery (G1) and disconnected ground line using a diode test lamp. Model 167.117/154/317/354
    If the diode test lamp lights up,

Detach ground line from additional battery and check the on-board electrical system after completing the work.

      AR54.10-P-0007MEH
9 Connect in reverse order.
10 Check clock display. If the time is not correct.

set proper time.

BATTERY

Number Designation Model 167
BA54.10-P-1005-01L Battery sensor to negative battery terminal Nm 6
