Remove/Install Cable For Header Bow - AR77.33-P-1050LWP
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
Shown on left side of vehicle
Shown on left side of vehicle

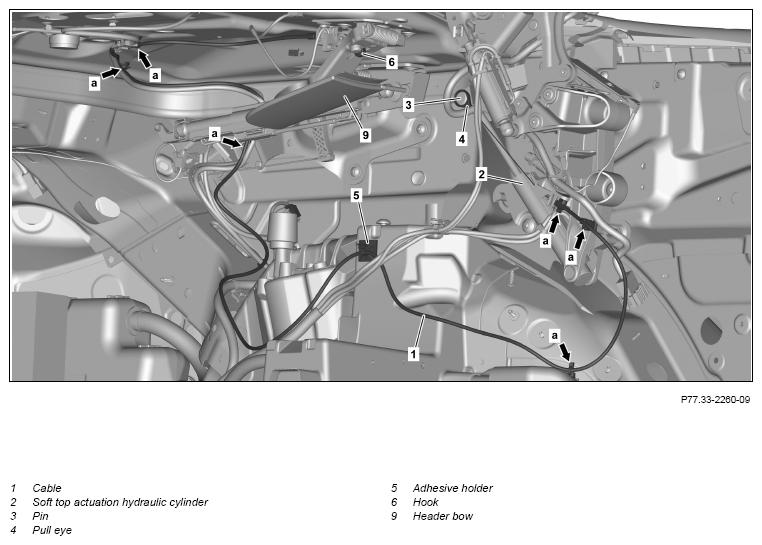

Entire cable (1) route shown on left side of vehicle
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove side paneling in trunk | AR68.30-P-4800LWR | |
| 2 | Remove side paneling in rear | Model 205.4 | AR68.30-P-4784LWR |
| Model 238.4 | AR68.30-P-4784LWO | ||
| 3 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 4 | Remove side airbag in the rear and place to one side with connected electric line | Model 205.4 with code 298 (Rear sidebag with belt force limiter) Model 238.4 with code 293 (Sidebags in rear) |
AR91.60-P-0694CLW |

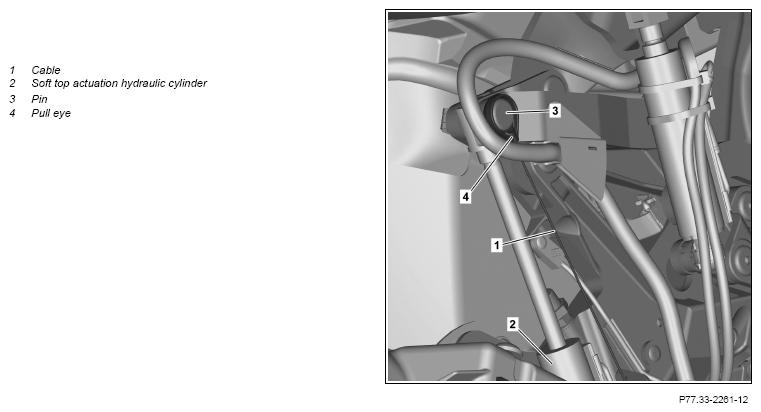

| 5 | Remove bolt (3) on soft top operation hydraulic cylinder (2) and remove towing eye (4) | ||

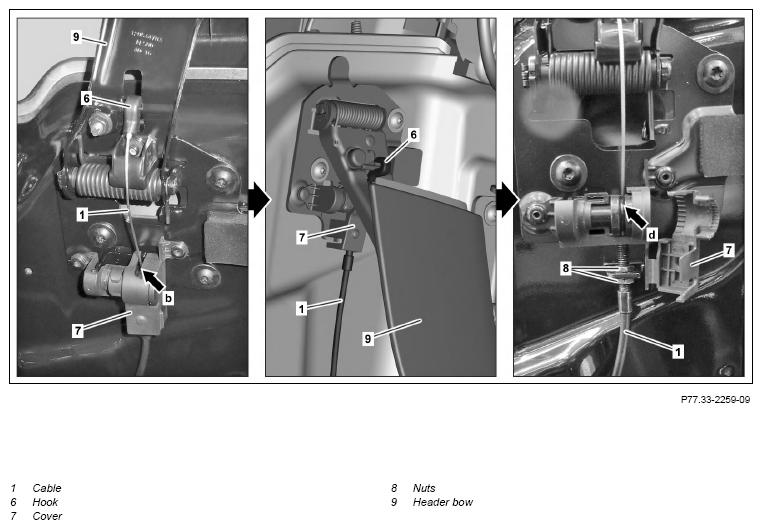

| 6 | Detach hook (6) from header bow (9) | ||
| 7 | Unclip cover (7) and fold to side | ||
| 8 | Detach nuts (8) and remove cable (1) to side | ||
| 9 | Fully expose cable (1) | ||
| 10 | Remove adhesive holder (5) | ||
| 11 | Unclip all holders (arrows a) of cable (1) | Fig 1 | |
| 12 | Install in the reverse order | ||
| 13 | Set cable (1) | AR77.33-P-1051LWP |
