Remove, Install Draft Stop - AR77.25-P-2000LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
with code 288 (Draft stop for convertible)
Model 238.4
with code 288 (Draft stop for convertible)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||
| 1 | Remove both seat side bolsters in the rear passenger compartment. | AR91.12-P-1711LWR | |
| 2 | Remove trim from the roll bars. | AR68.30-P-1380LWR | |

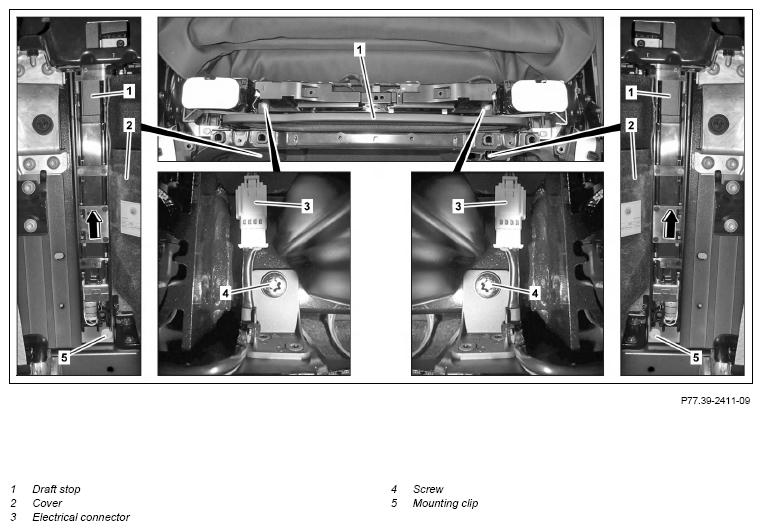

| 3 | Loosen trims (2) in the area of the draft stop (1). | ||
| 4 | Disconnect electrical connectors (3) and unclip plug sockets. | ||
| 5 | Unscrew screw/bolts (4). | ||
| 6 | Unclip bottom draft stop (1) and remove upward (arrows). | ||
| 7 | Prepare draft stop (1) for installation. | When installing new draft stop (1). Model 238.4 with code 288 (Draft stop for convertible) |
AR77.25-P-2000-01LWP |
with code 288 (Draft stop for convertible) Screw, angle bracket to draft stop/crossmember |
BA77.25-P-1002-03A | ||
| 8 | Install in the reverse order. |
DRAFT STOP
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.25-P-1002-03A | Screw, angle bracket to draft stop/crossmember | Nm | 6 |
