Remove/Install CROSSMEMBER Under Instrument Panel - Ar62.30-P-1250LWE
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213
Model 238
| Remove/install | |||
| 1 | Remove left side air vent air outlet temperature sensor and right side air vent air outlet temperature sensor | Model 238 | AR83.30-P-7801LWO |
| Model 213 | AR83.30-P-7801LWE | ||

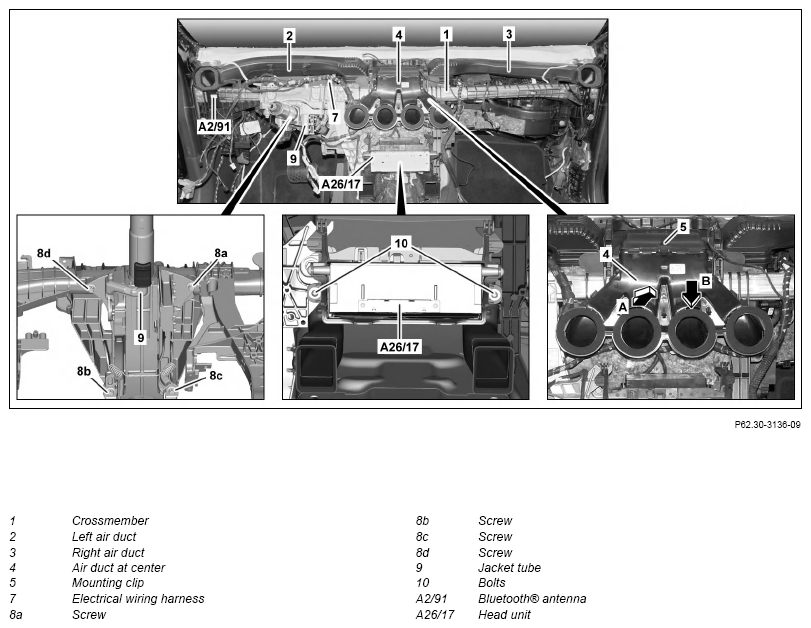

| 2 | Remove left air duct (2) and right air duct (3) | ||
| 3 | Detach center air duct (4) in direction of arrow (arrow A) and remove from retaining clip (5) downward (arrow B) | ||
| 4 | Unclip Bluetooth® antenna (A2/91) from crossmember (1) + m | ||
| 5 | Remove electric wiring harness (7) from crossmember (1) | ||
| Fig 1 | |||
| 6 | Unscrew bolts (8a, 8b, 8c, 8d) from crossmember (1) and carefully lay jacket tube (9) down | Position bolts (8a, 8b, 8c, 8d) lightly by hand first and then tighten them in the give sequence. |
|
| *BA46.10-P-1001-03S | |||
| 7 | Unscrew bolts (10) and lay head unit (A26/17) down to side | ||
| 8 | Remove center aid ducts (11) | ||

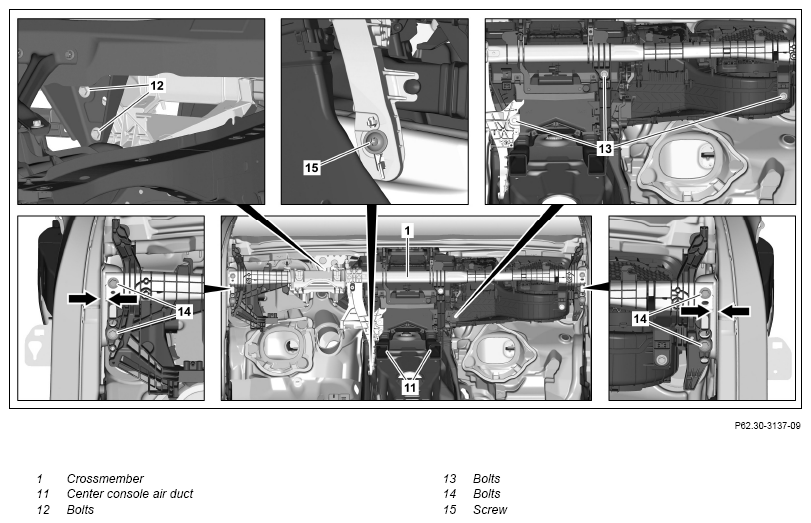

| 9 | Mark installation position of crossmember (1) in relation to A-pillars (arrows) | ||
| 10 | Remove screw/bolts (12) | *BA68.10-P-1002-02G | |
| 11 | Remove bolts (13) | ||
| 12 | Remove screws/bolts (15) | *BA68.10-P-1003-02G | |
| 13 | Remove bolts (14) | ||
| *BA68.10-P-1001-02G | |||
| 14 | Remove crossmember (1) from vehicle on driver side. | ||
| 15 | Install in the reverse order |
JACKET TUBE
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA46.10-P-1001-03S | Bolt, steering column tube to crossmember under instrument panel | Stage 1 | Nm | 12 | 12 |
| Stage 2 | ∠° | 90 | 90 | ||
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA68.10-P-1001-02G | Screw/bolt, crossmember to A-pillar | Nm | 25 | 25 |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA68.10-P-1002-02G | Screw/bolt, crossmember to firewall below windshield | Clearance hole | Nm | 25 | 25 |
| Blind hole | Nm | 30 | - | ||
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA68.10-P-1003-02G | Screw/bolt, crossmember strut to side of transmission tunnel | Nm | 30 | 25 |
