Remove/Install Front Side Air Vent Temperature Sensor - AR83.30-P-7801LWE
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

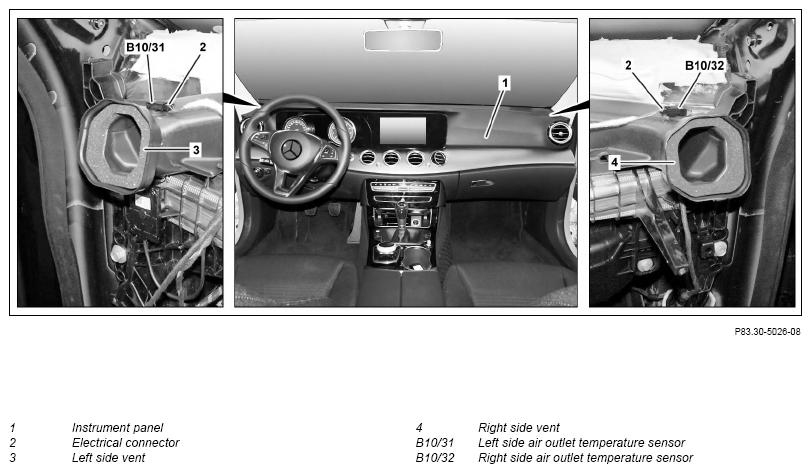

| 1 | Dashboard (1) removal | AR68.10-P-1000LWE | |
| 2 | Disconnect corresponding electrical connector (2) | ||
| 3 | Turn left side air vent air outlet temperature sensor (B10/31) or right side air vent air outlet temperature sensor (B10/32) through 90° in counterclockwise direction and pull out of left side air vent (3) or right side air vent (4) | ||
| 4 | Install in the reverse order |
