(Remove/Install Additional Battery - AR54.10-P-0007LHV)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213.016/050/053/054/153/155/216/253
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||

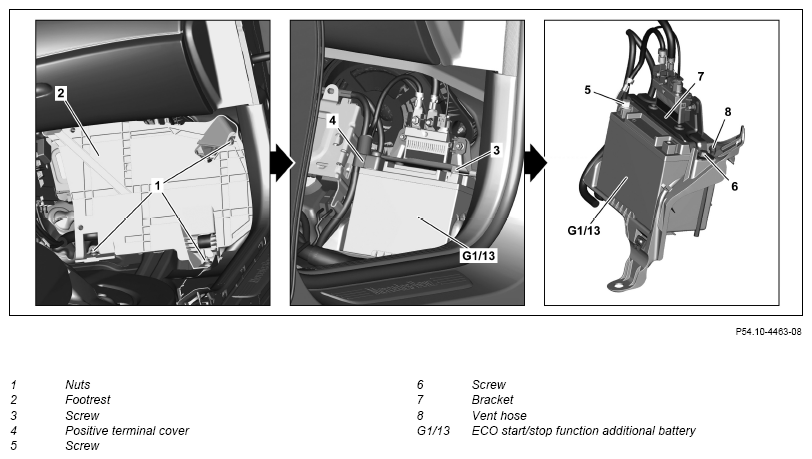

| 1 | Remove floor covering in front passenger footwell. | AR68.20-P-2065LWE | |
| 2 | Unscrew nuts (1). | ||
| 3 | Remove footrest (2) and damping below. | ||
| 4 | Unscrew screw (3) and remove ground line. | *BA54.10-P-1003-01A | |
| Check | |||
| 5 | Using diode test lamp, check on-board electrical system for voltage between positive line of ECO start/stop function auxiliary battery (G1/13) and a suitable ground point. | If the diode test lamp lights up, ↓ Detach ground line from on-board electrical system battery and check the on-board electrical system after completing the work. |
|
| AR54.10-P-0003LW | |||
Cover positive line of ECO start/stop function additional battery (G1/13). Otherwise, a short circuit may occur. |
|||
| 6 | Remove positive pole cover (4). | ||
| 7 | Unscrew bolt (5) and remove positive line. | Cover positive line of ECO start/stop function additional battery (G1/13). Otherwise, a short circuit may occur. |
|
| *BA54.10-P-1003-01A | |||
| 8 | Unscrew screw/bolt (6). | ||
| 9 | Remove holder (7) with attached electric lines. | ||
| 10 | Remove vent hose (8). | ||
| 11 | Remove ECO start/stop function auxiliary battery (G1/13). | ||
| 12 | Install in the reverse order. |
BATTERY
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA54.10-P-1003-01A | Screw/bolt, electrical line to battery terminal of additional battery | Nm | 6 |
