Remove/Install Rear Fuse And Relay Module - AR54.15-P-0001ME

Model 167

MODIFICATION NOTES

10.09.2019

"Remove service flap and line bracket", added.

Operation steps 1.1 and 4

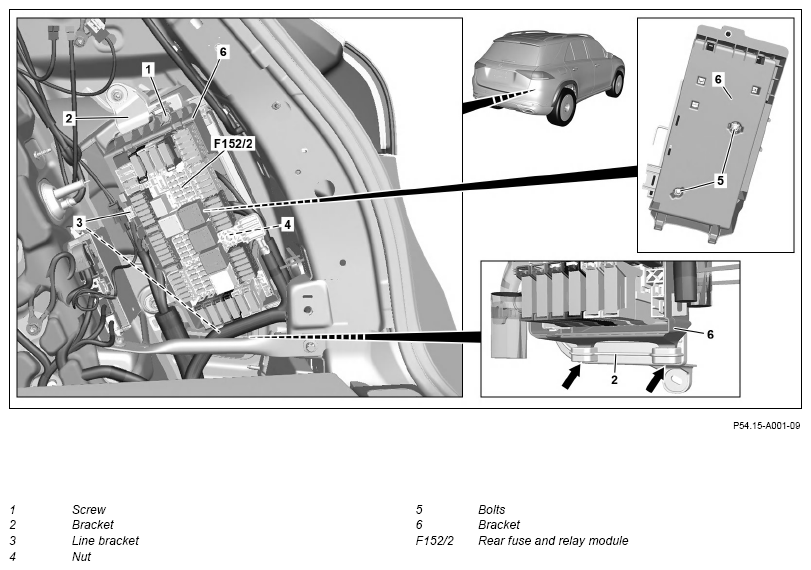

Fig 1: Rear Fuse And Relay Module Components Location - Model 167 (Shown On Model 167.1)

Courtesy of MERCEDES-BENZ USA

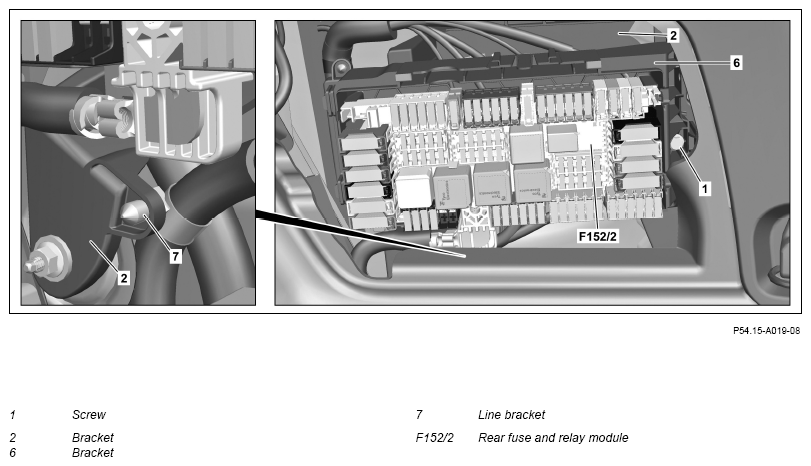

Shown On Model 167.1

Courtesy of MERCEDES-BENZ USA

Shown On Model 167.9

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1.1	Remove service flap in right load compartment trim.	Model 167.9 except code M036 (Maybach version)
1.2	Remove right load compartment cover.	Model 167.1/3 Model 167.9 with code M036 (Maybach version)
		Model 167.1	AR68.30-P-4800ME
		Model 167.3	AR68.30-P-1185MEC
		Model 167.9 with code M036 (Maybach version)	AR68.30-P-1185MEM
2	Disconnect ground line from on-board electrical system battery.		AR54.10-P-0003ME
3	Remove line brackets (3) from holder (6).	The number of line brackets (3) varies depending on the vehicle equipment.
4	Remove line bracket (7) from holder (2).	Model 167.9
5	Remove screw (1).
6	Remove bracket (6) with rear fuse and relay module (F152/2) from bracket (2).	Make sure that the bracket (6) is correctly seated in the bracket (2) (arrows).
7	Remove bolts (5).
8	Detach rear fuse and relay module (F152/2) from bracket (6).	The rear fuse and relay module (F152/2) is clipped into the corners on the holder (6).
9	Remove nut (4) of positive line from rear fuse and relay module (F152/2).	Nut, positive line to rear fuse and relay module	*BA54.15-P-1004-01L
10	Release and disconnect all electrical connectors from rear fuse and relay module (F152/2).
11	Unclip all fuse holders and place to one side.
12	Remove rear fuse and relay module (F152/2).
13	Install in the reverse order.

FUSE AND RELAY BOX

Number	Designation			Model 167
BA54.15-P-1004-01L	Nut, positive line to rear fuse and relay module	M8	Nm	16
