Remove/Install Side Paneling In Trunk - AR68.30-P-4800ME
Model 167.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open tailgate. | ||
| 2 | Remove trunk separator. | ||
| 3 | Remove spare wheel with stowage tray in the load compartment. | Model 167.117/154 with code 669 (Spare tire on steel rim) |
|
| 4.1 | Move rear seat to foremost position and fold backrest all the way forward. | Model 167.1 with code 567 (Vario rear seat) |
|
| 4.2 | Remove seat cushion and fold seat backrest forward. | Model 167.1 except code 567 (Vario rear seat) |
AR91.12-P-1021ME |
| 5 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 6 | Unclip rear load compartment floor, lift, and disconnect electrical connector of KEYLESS-GO antenna in front load compartment. | Model 167.117/154 | |

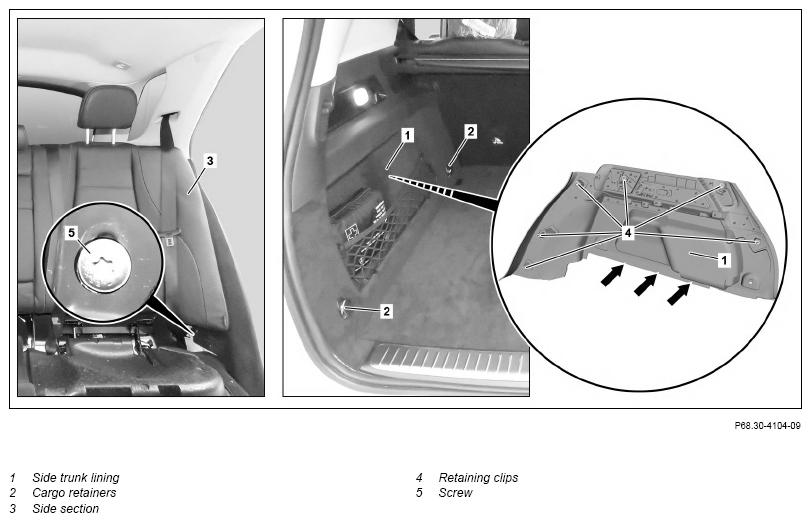

| Fig 1 | |||
| 7 | Remove trunk floor. | The KEYLESS-GO antenna remains on the load compartment floor. |
|
| 8 | Remove edge guard in working area of liftgate opening. | ||
| 9 | Remove rear-end center-section trim. | AR68.30-P-4786ME | |
| 10 | Remove luggage compartment cover. | Model 167.1 with code 541 (Combined luggage cover incl. safety net) Model 167.1 with code 723 (Load compartment cover) |
|
| 11 | Remove luggage space management system frame. | Model 167.1 with code 942 (Load compartment/trunk package) |
|
| 12 | Remove cargo retainers (2). | *BA68.50-P-1001-03F | |
| 13.1 | Remove side section (3) of seat backrest. | Model 167.1 with code 293 (Sidebag in rear left and right) except code 567 (Vario rear seat) |
|
| AR91.60-P-0694ME | |||
| 13.2 | Remove screw (5) and remove side section (3) of seat backrest. | Model 167.1 except code 293 (Sidebag in rear left and right) except code 567 (Vario rear seat) |
|
| *BA91.12-P-1012-03M | |||
| 14 | Remove edge guard in working area of rear doors. | ||
| 15 | Remove rear door sill. | AR68.30-P-4100ME | |
| 16 | Unclip side trunk lining (1) until the electrical connectors are accessible. | Do not crush or kink or subject electric lines to tension. This will result in damage to the lines which may impair their functional capability. |
|
| Fig 1 | |||
| 17 | Release and disconnect electrical connectors. | ||
| 18 | Remove side trunk lining (1). | ||
| 19 | Install in the reverse order. |
CARGO RETAINERS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA68.50-P-1001-03F | Bolt, cargo retainers to body | Nm | 24 |
REAR SEATS
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA91.12-P-1012-03M | Bolt, side section of rear seat backrest to holder | M6 | Nm | 7 |
