Remove/Install Vehicle Interior Engine Sound Generator - AR54.21-P-1110ME
Model 167.1
With Code U68 (Active engine sound generator)

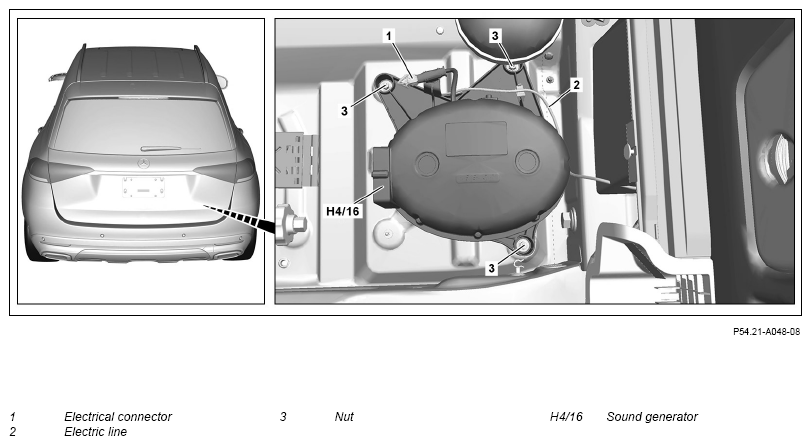

Fig 1: Vehicle Interior Engine Sound Generator Components Location - Model 167.1 With Code U68 (Shown Except Code 847)
Shown On Model 167.1 except for code 847 (3rd seat row)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove trim from spare wheel well. | Model 167.1 with code U68 (Active engine sound generator) except code 847 (3rd seat row) |
|
| AR68.30-P-4620ME | |||
| 1.2 | Remove 3rd seat row. | Model 167.1 with code 847 (3rd seat row) with code U68 (Active engine sound generator) |
|
| AR91.12-P-0007ME | |||
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Detach electrical line (2) from sound generator (H4/16). | ||
| 4 | Release and disconnect electrical connector o sound generator control unit (N12). | :
Model 167.1 with code 847 (3rd seat row) with code U68 (Active engine sound generator) |
|
| 5 | Remove nuts (3). | ||
| 6 | Remove sound generator (H4/16). | ||
| 7 | Detach sound generator control unit (N12) from sound generator (H4/16). | Model 167.1 with code 847 (3rd seat row) with code U68 (Active engine sound generator) When replacing the sound generator (H4/16). |
|
| 8 | Install in the reverse order. |
