Remove/Install Engine Sound Generator Control Unit - AR54.21-P-1100ME
Model 167.1
With Code U68 (Active engine sound generator)
Except Code 847 (3rd seat row)

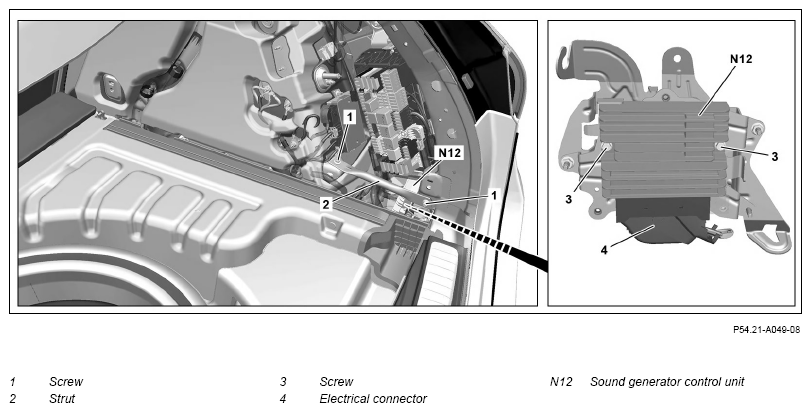

Fig 1: Engine Sound Generator Control Unit Components Location - Model 167.1 With Code U68, Except Code 847
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of sound generator control unit (N12). | When replacing the sound generator control unit (N12). | |
| AD00.00-P-2000-06ME | |||
| 2 | Remove side trim in trunk at right. | AR68.30-P-4800ME | |
| 3 | Remove screws (1) and remove strut (2). | *BA64.20-P-1003-01G | |
| 4 | Remove screws (3) and remove sound generator control unit (N12) from holder. | *BA00.10-P-1001-04A | |
| 5 | Release and disconnect electrical connector (4). | ||
| 6 | Remove sound generator control unit (N12). | ||
| 7 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1001-04A | M5X0.8 | Nm | 5 | 8 |
REAR END
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA64.20-P-1003-01G | Screw, rear left/right strut to body | M8 | Nm | 24 |
