Remove/Install Front Lower Transverse Control Arm Supporting Joint - AR33.20-P-0440ME
Model 167
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove lower control arm (1). | AR33.20-P-0510ME | |
| 2 | Clamp lower transverse control arm (1) in a vise. | Use soft vise jaws. Otherwise damage will occur. |
|
| 3 | Unbolt nut (2). | *BA33.20-P-1005-01W | |

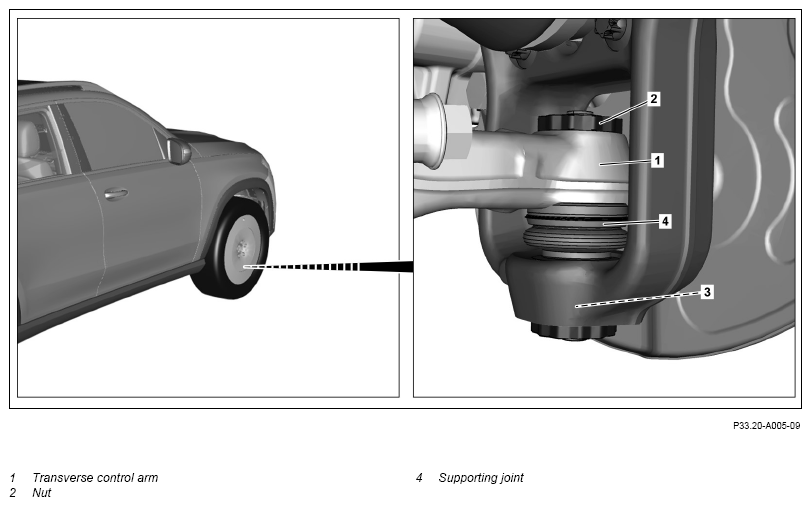

| Fig 2 | |||
| 4 | Remove supporting joint (4) from lower transverse control arm (1). | ||
| 5 | Install in the reverse order. |
WHEEL CONTROL, HUB
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA33.20-P-1005-01W | Locking slotted nut, supporting ball joint to steering knuckle | Stage 1 | Nm | 120 |
| Stage 2 | ∠° | 45 | ||
