Remove/Install Anti-Roll Bar On Rear Axle - AR32.35-P-2210LW
Model 205 (except 205.386/387/486/487)
Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989/992/993)

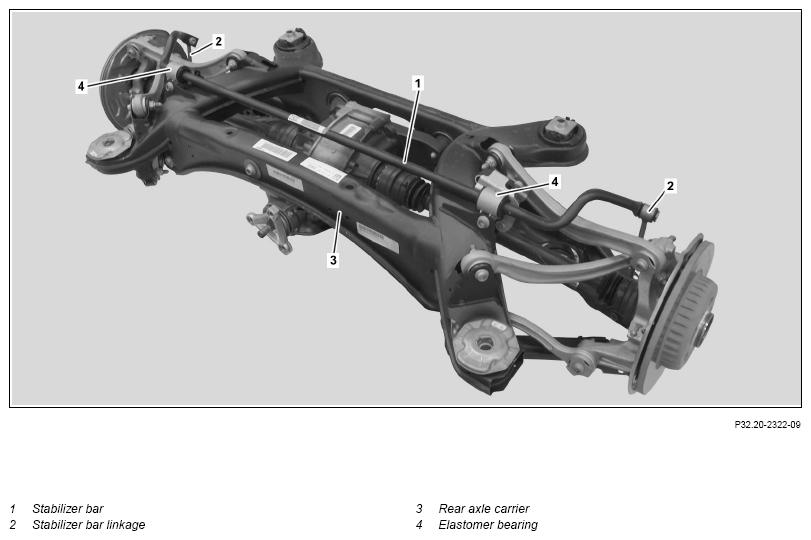

Fig 1: Anti-Roll/Stabilizer Bar On Rear Axle Components Location - Model 253 (Except 253.388/389/988/989/992/993) (Shown On Model 205)
Shown on removed rear axle on model 205

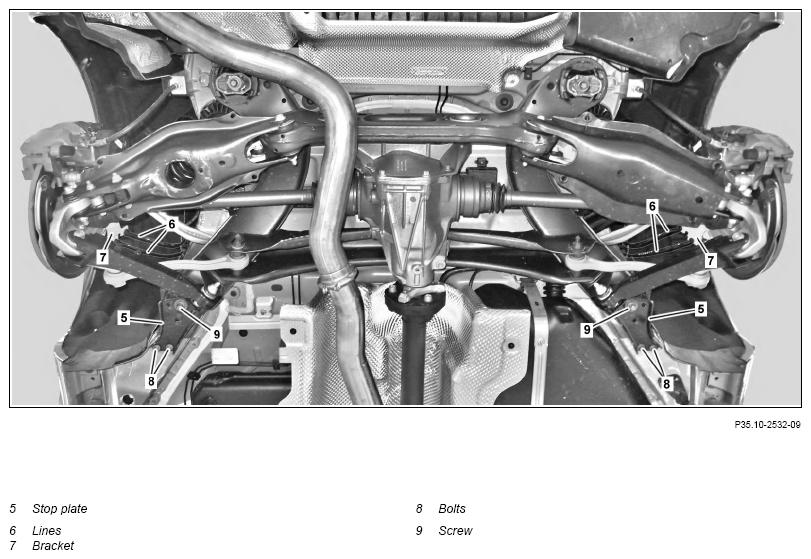

Shown on model 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on level control | Model 213.2 (except 213.264/288/289) except code 489 (AIRMATIC Dual Control/semi-active air suspension) | AH32.22-P-1001-02LWT | |
| Notes on AIRmatic | Model 205 (except 205.386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) |
AH32.22-P-1000-02LW | |
| Remove/install | |||
| 1 | Shift transmission to position N or to idle. | ||
| 2 | Raise vehicle and fix in place on vehicle lift. | AR00.60-P-1006A | |
| 3 | Drain pressure of air suspension at rear axle using vehicle diagnosis system. | Model 205 (except 205.386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213.0 (except 213.064/088/089) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213.1 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213.2 (except 213.264/288/289) Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) |
|
| AD00.00-P-2000-04B | |||
| 4 | Perform power disconnect of high-voltage on-board electrical system. | Model 213.016/050/053/054/216 | AR54.10-P-1150LHV |
| Model 205.012/013/047/053/054/147/212/213/247/253 | AR54.10-P-1150LW | ||
| Model 253.311/353/354/911/953/954 | AR54.10-P-1150LVH | ||
| 5 | Remove rear wheels. | AR40.10-P-1102A | |
| 6 | Remove diagonal struts. | Model 205.4 (except 205.486/487) Model 213.2 (except 213.264/288/289) |
|
| AR61.10-P-5142LWP | |||
| 7 | Remove necessary components of exhaust system. | Model 205 (except 205.386/387/486/487) Model 213 (except 213.064/088/089/264/288/289) Model 253 (except 253.388/389/988/989/992/993) |
|
| Model 213 (except 213.064/088/089/264/288/289) with engine 254 | AR49.10-P-4824MRV | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 254 | AR49.10-P-4825MRV | ||
| Model 205 (except 205.386/387/486/487) with engine 626 | AR49.10-P-4952ORB | ||
| Model 205 (except 205.386/387/486/487) with engine 654 | AR49.10-P-4952OLI | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 656 | AR49.10-P-4952OIB | ||
| Model 205 (except 205.386/387/486/487) with engine 264 | AR49.10-P-4952MRI | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 264 | AR49.10-P-4952MRH | ||
| Model 205 (except 205.386/387/486/487) with engine 177 | AR49.10-P-4952MNA | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 256.9 | AR49.10-P-4825MSA | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 256.9 | AR49.10-P-4824MSA | ||
| Model 205 (except 205.386/387/486/487) with engine 274.9, 276 | AR49.10-P-4952LW | ||
| Model 205 (except 205.386/387/486/487) with engine 651 | AR49.10-P-7100LWB | ||
| Model 253 (except 253.388/389/988/989/992/993) with engine 274.9, 276.8, 642, 651.9 | AR49.10-P-4952RF | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 274.9 | AR49.10-P-4952MRD | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 642 | AR49.10-P-4952OGW | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 654 | AR49.10-P-4952OLC | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 276.8 | AR49.10-P-4825MND | ||
| Model 213 (except 213.064/088/089/264/288/289) with engine 276.8 | AR49.10-P-4824MND | ||
| 8 | Remove propeller shaft from rear axle differential, place to one side and fix in place. | Model 205 (except 205.386/387/486/487) Model 213 (except 213.064/088/089/264/288/289) |
AR41.10-P-0050LW |
| Model 253 (except 253.388/389/988/989/992/993) | AR41.10-P-0050LWX | ||
| 9 | Unclip electric lines from holders for level sensors. | Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 (except 213.064/088/089/264/288/289) with code 459 (Steel suspension with adjustable damping) Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) |
|
| 10 | Detach and remove level sensors with holders from rear axle carrier (3). | Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 (except 213.064/088/089/264/288/289) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) |
AR82.10-P-0005LW |
| 11 | Release left and right underfloor paneling in area of stop plates (5). | Model 205.0/1/2, 205.3 (except 205.386/387) Model 213.0 (except 213.064/088/089), 213.1 Model 253 (except 253.388/389/988/989/992/993) |
|
| Model 205.0/1/2, 205.3 (except 205.386/387) Model 253 (except 253.388/389/988/989) with engine 177, 264, 274, 276, 642, 651 |
AR61.30-P-1001LW | ||
| Model 213.0 (except 213.064/088/089), 213.1 | AR61.30-P-1001LWE | ||
| 12 | Unhook lines (6) at right and left from holders (7). | ||
| 13 | Remove screws (8) from stop plates (5). | *BA35.10-P-1003-01H | |
| 14 | Support rear axle using an assembly mount and mounting plate. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 15 | Unscrew screws (9) and remove stop plates (5). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA35.10-P-1001-01H | |||
| 16 | Carefully lower rear axle at front. | ||
| 17 | Remove both torsion bar linkages (2) from stabilizer bar (1). | Model 213 (except 213.064/088/089/264/288/289) | AR32.35-P-3329MNE |
| Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989/992/993) |
AR32.35-P-3329LWX | ||
| 18 | Take stabilizer bar (1) off of rear axle carrier (3) and remove. | Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) Nut, torsion bar to rear axle carrier |
*BA32.20-P-1002-04T |
Model 205 (except 205.086/087/286/287/386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 205.086/087/286/287 Model 213 (except 213.064/088/089/264/288/289) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Nut, torsion bar to rear axle carrier |
*BA32.20-P-1002-04S | ||
| 19 | Check elastomer bearings (4) for wear and damage. | When reusing stabilizer bar (1). If a problem arises ↓ Replace stabilizer bar (1). |
|
| 20 | Install in the reverse order. | ||
| 21 | Perform chassis alignment. | AR40.20-P-0200LW |
REAR AXLE TORSION BAR
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) except code 489 (AIRMATIC Dual Control/semi-active air suspension) | Model 205 (except 205.086/087/286/287/386/387/486/487) with code 489 (AIRMATIC Dual Control/semi-active air suspension) | ||
|---|---|---|---|---|---|
| BA32.20-P-1002-04S | Nut, torsion bar to rear axle carrier | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | - | - | ||
REAR AXLE TORSION BAR
| Number | Designation | Model 205.086/087/286/287/386/387/486/487 | Model 213 (except 213.088/089/288/289) except code 489 (AIRMATIC Dual Control/semi-active air suspension) | ||
|---|---|---|---|---|---|
| BA32.20-P-1002-04S | Nut, torsion bar to rear axle carrier | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | - | - | ||
REAR AXLE TORSION BAR
| Number | Designation | Model 213 (except 213.088/089/288/289) with code 489 (AIRMATIC Dual Control/semi-active air suspension) | ||
|---|---|---|---|---|
| BA32.20-P-1002-04S | Nut, torsion bar to rear axle carrier | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | - | ||
REAR AXLE TORSION BAR
| Number | Designation | Model 253 (except 253.388/389/988/989) except code 489 (AIR BODY CONTROL) | Model 253 (except 253.388/389/988/989) with code 489 (AIR BODY CONTROL) | |
|---|---|---|---|---|
| BA32.20-P-1002-04T | Nut, torsion bar to rear axle carrier | Nm | 80 | 80 |
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA35.10-P-1001-01H | Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly | Stage 1 | Nm | 100 | 100 |
| Stage 2: Loosen | ∠° | 180 | 180 | ||
| Stage 3 | Nm | 100 | 100 | ||
| Stage 4 | ∠° | 90 | 90 | ||
REAR AXLE CARRIER
| Number | Designation | Model 253 | ||
|---|---|---|---|---|
| BA35.10-P-1001-01H | Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly | Stage 1 | Nm | 100 |
| Stage 2: Loosen | ∠° | 180 | ||
| Stage 3 | Nm | 100 | ||
| Stage 4 | ∠° | 90 | ||
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA35.10-P-1003-01H | Bolt, stop plate to body | Nm | 35 | 35 |
REAR AXLE CARRIER
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA35.10-P-1003-01H | Bolt, stop plate to body | Nm | 35 |
