Remove/Install Electric Liftgate Control Unit - AR72.29-P-0003LW
Model 205.2
with code 890 (EASY-PACK-tailgate)
Model 213.2
with code 890 (EASY-PACK-tailgate)
Model 253.1/9
with code 890 (EASY-PACK-tailgate)
Model 293
with code 890 (EASY-PACK-tailgate)
Shown on MODEL 205.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of control unit for trunk lid/liftgate control (N121/1). | When replacing the control unit for the trunk lid/liftgate control (N121/1). | |
| Model 205.2, 213.2, 253.1/9 with code 890 (EASY-PACK-tailgate) |
AD00.00-P-2000-04B | ||
| Model 293 with code 890 (EASY-PACK-tailgate) |
AD00.00-P-2000-06FR | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

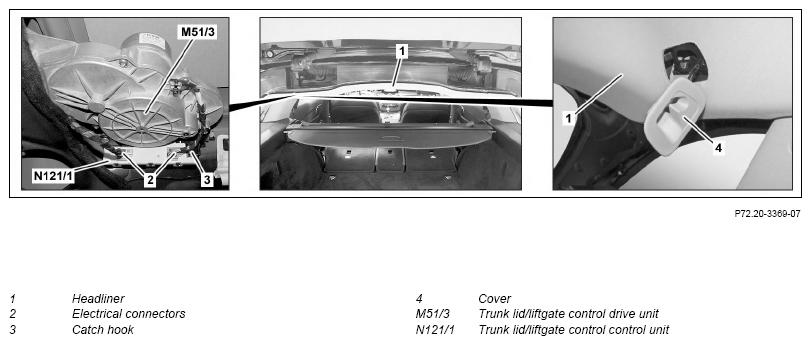

| 3 | Unclip cover (4) from roof lining (1). | ||
| 4 | Remove C-pillar trim. | Model 253.992/993 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4490RFW |
| Model 205.2, 213.2 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4490LWS | ||
| Model 253.1, 253.9 (except 253.992/993), 293 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4490LWG | ||
| 5 | Remove D-pillar trim. | Model 205.2 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4495LW |
| Model 253.1/9, 293 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4495LWG | ||
| Model 213.2 with code 890 (EASY-PACK-tailgate) |
AR68.30-P-4497LWT | ||
| 6 | Press roof lining (1) in the area of the control unit for the trunk lid/liftgate control (N121/1) downward somewhat and hold. | ||
| 7 | Release catch hook (3) and remove control unit for the trunk lid/liftgate control (N121/1) from the trunk lid/liftgate control drive unit (M51/3). | ||
| 8 | Disconnect electrical connectors (2). | ||
| 9 | Remove control unit for trunk lid/liftgate control (N121/1). | ||
| 10 | Install in the reverse order. | ||
| 11 | Normalize trunk lid/liftgate control drive unit (M51/3) with vehicle diagnosis system. | When replacing the control unit for the trunk lid/liftgate control (N121/1). | |
| Model 205.2, 213.2, 253.1/9 with code 890 (EASY-PACK-tailgate) |
AD00.00-P-2000-04B | ||
| Model 293 with code 890 (EASY-PACK-tailgate) |
AD00.00-P-2000-06FR |
