Remove/Install Trim Panel At D-Pillar - AR68.30-P-4495LWG

Model 253, 293

Courtesy of MERCEDES-BENZ USA

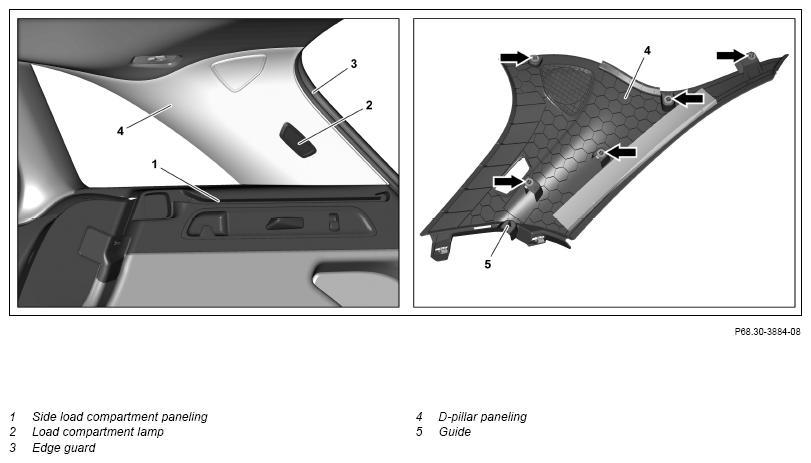

Shown on right side of vehicle, model 253.9 except code 810 (Sound system)

	Remove/install
1	Remove side load compartment paneling (1)	Model 253 (except 253.992/993), 293	AR68.30-P-1180LWG
		Model 253.992/993	AR68.30-P-1180RFW
2	Unclip cargo area lamp (2) and disconnect electrical connector	Mounting wedge	Fig 1
3	Release edge guard (3) in area of D-pillar trim (4)
4	Unclip C-pillar paneling (4) (arrows) and remove	Ensure that guide (5) is seated correctly in intended cutout in D-pillar. Mounting wedge	Fig 1
5	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
