Remove/Install Fixed Window In Rear Door - AR72.12-P-1970LWS

Model 205.0/1/2

Model 213.0/2

Model 253

Model 293

Shown on Model 205.2

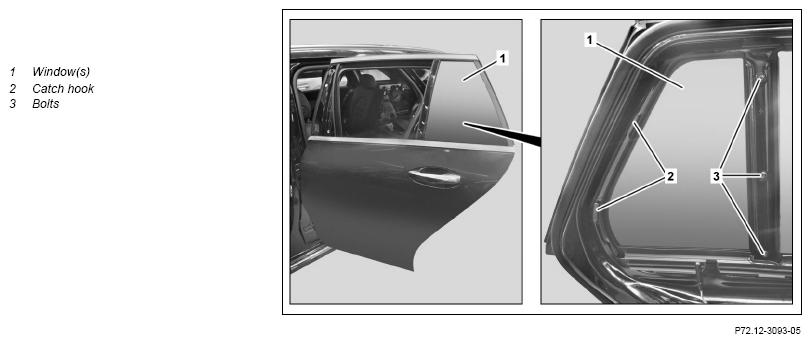

Fig 1: Fixed Window In Rear Door Components Location - Model 253 (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove seal for side window at rear door.		AR72.12-P-1911LW
2	Remove screw/bolts (3).	Model 293 Only 2 screws (3) are installed.
3	Unclip window (1) from catch hooks (2) and remove.	Carefully remove window (1). Otherwise parts of the rear door and window (1) can be damaged. Ensure that window (1) is seated correctly.
4	Install in the reverse order.
