Remove/Install Rear Engine Mount - AR22.10-P-1160LWB

Model 205 with engine 264, 274, 276.8, 651, 654

Model 253 with engine 264, 274, 276.8, 642, 651, 654, 656

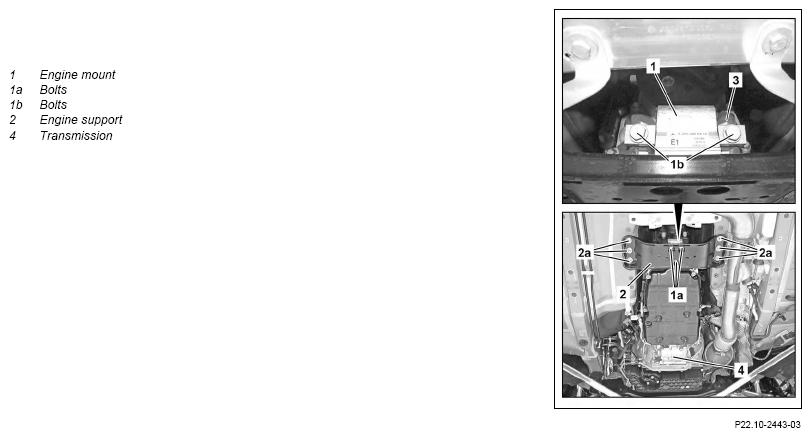

Shown on model 205 with transmission 725 without code M005 (4MATIC)

Fig 1: Rear Engine Mount Components Location - Model 253 With Engines 264 And 274 (Shown On Model 205 With Transmission 725 Without Code M005)

Courtesy of MERCEDES-BENZ USA

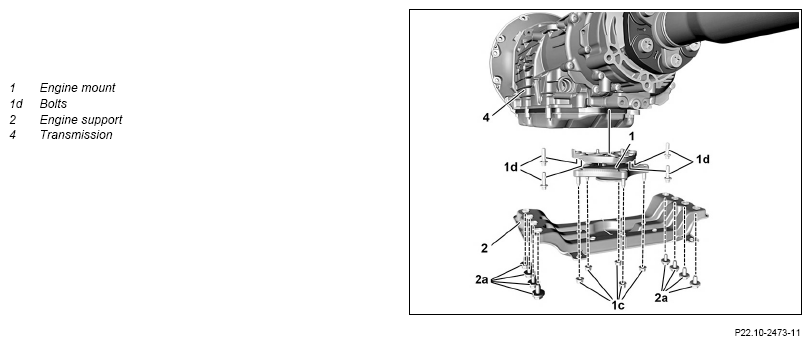

Shown on model 205 with transmission 725 with code M005 (4MATIC)

Fig 2: Rear Engine Mount Components Location - Model 253 With Engines 264 And 274 (Shown On Model 205 With Transmission 725 With Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Secure vehicle on vehicle lift.		AR00.60-P-1006A
2	Remove center and rear section of lower engine compartment lining.		AR61.20-P-1105LW
3	Support transmission (4).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
4.1	Remove engine carrier (2).	Model 205 with engine 264, 274, 276.8, 651, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with engine 264, 274, 276.8, 642, 651, 654, 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR22.10-P-4360LWB
4.2	Remove bolts (1a).	Engine 264, 274, 276.8, 651, 654 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 264, 274, 651, 654 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 264 in model 253 (except 253.388/389/988/989/992/993) except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 274 in model 253.942/948 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 651 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 654 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, engine crossmember to rear engine mount	*BA22.10-P-1004-03M
		Engine 264, 274, 276.8, 651, 654 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount on engine support	*BA22.10-P-1004-03E
5	Lift transmission (4) somewhat.	Engine 264, 274, 276.8, 651, 654 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 264, 274, 651, 654 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)
6	Unscrew screws (1b or 1d) and remove engine mount (1).	Engine 264 in model 253 (except 253.388/389/988/989/992/993) Engine 274.9 in model 253.346/349/354/942/943/946/948/949/954 Engine 276.8 in model 253.364/964 Engine 642 in model 253.325/925 Engine 651 in model 253.303/305/309/903/905/909 Engine 654, 656 in model 253Bolt, rear engine mount to holder/transmission/engine carrier	*BA22.10-P-1003-03M
		Engine 264, 274, 276.8, 651, 654 in model 205 Screw/bolt, rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
7	Install in the reverse order.
