Remove/Install Rear Engine Support - AR22.10-P-4360LWB

Engine 264, 274, 276.8, 642, 651, 654, 656 in model 253

Engine 264, 274, 276.8, 651, 654 in model 205

Shown: model 205 with engine 651 without code M005 (4MATIC)

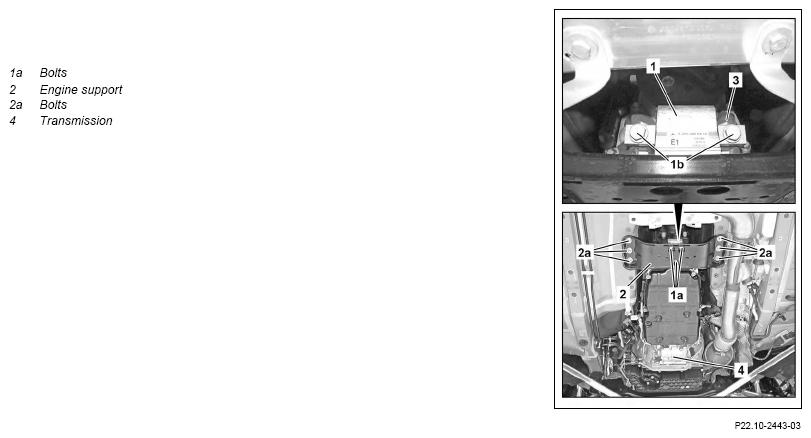

Fig 1: Rear Engine Support Components Location - Engine 264, 274 In Model 253 (Shown: Model 205 With Engine 651 Without Code M005)

Courtesy of MERCEDES-BENZ USA

Shown on model 205 with engine 651 with code M005 (4MATIC)

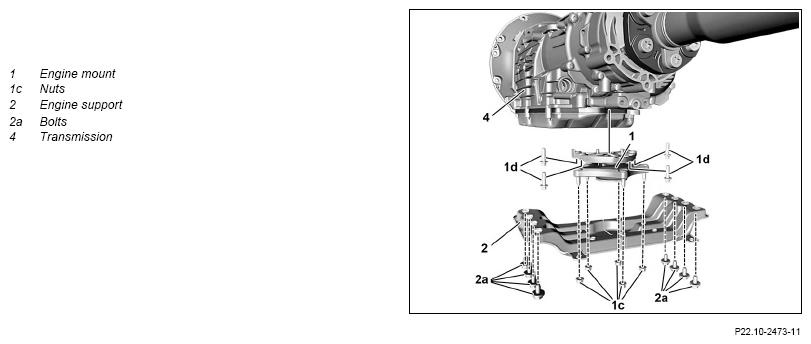

Fig 2: Rear Engine Support Components Location - Engine 264, 274 In Model 253 (Shown: Model 205 With Engine 651 With Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove center and rear section of lower engine compartment lining.		AR61.20-P-1105LW
2	Support transmission (4).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
3.1	Remove bolts (1a).	Engine 264, 274, 276.8, 651, 654 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 264, 274, 651, 654 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 264 in model 253 (except 253.388/389/988/989/992/993) except code M005 (Vehicles with 4MATIC/all-wheel drive)	*BA22.10-P-1004-03M
		Engine 274 in model 253.942/948 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 651 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 654 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, engine crossmember to rear engine mount
		Model 205 with engine 264, 274, 276.8, 651, 654 except code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount on engine support	*BA22.10-P-1004-03E
3.2	Remove nuts (1c).	Engine 264, 274, 276.8, 642, 651, 654, 656 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 264, 274, 276.8, 651, 654 in model 205 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 253 (except 253.388/389/988/989/992/993) with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive)	*BA22.10-P-1004-03M
		Model 253 with engine 654, 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 253.303/305/309/903/905/909 with engine 651 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 253.325/925 with engine 642 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 253.346/349/354/943/946/949/954 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 253.364/964 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, engine crossmember to rear engine mount
		Model 205 with engine 264, 274, 276.8, 651, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount on engine support	*BA22.10-P-1004-03E
4	Remove screws (2a) and remove engine carrier (2).	Never use an impact wrench or pneumatic tools to remove/screw in screws (2a). Non-observance results in damage to thread.
		Model 253 (except 253.388/389/988/989/992/993) with engine 264	*BA22.10-P-1005-03M
		Model 253 with engine 654, 656 Model 253.303/305/309/903/905/909 with engine 651
		Model 253.325/925 with engine 642 Model 253.346/349/354/942/943/946/948/949/954 with engine 274
		Model 253.364/964 with engine 276.8Bolt, engine crossmember to frame floor assembly
		Engine 264, 274, 276.8, 651, 654 in model 205Screw/bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
5	Install in the reverse order.
