Remove/Install Air Suspension Compressor Holder - AR32.22-P-2009MNE
Model 213.088/089/288/289
with code 489 (AIRMATIC Dual Control/semi-active air suspension)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||

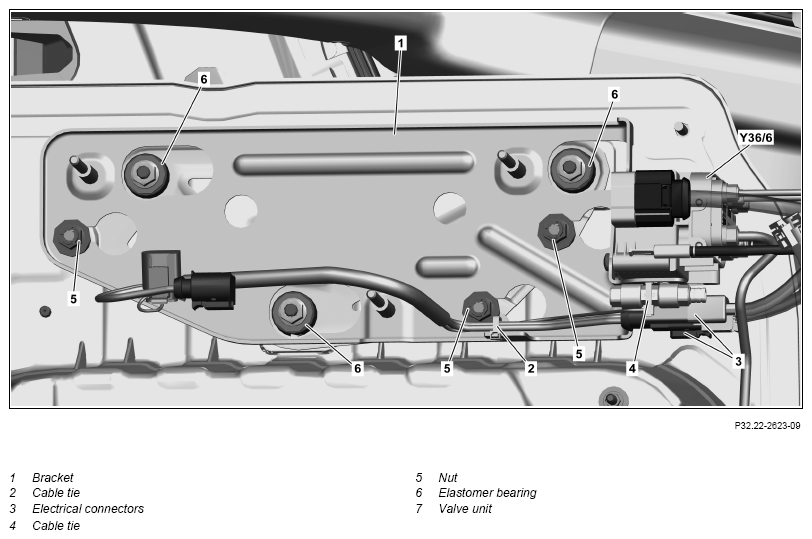

| 1 | Remove compressor | AR32.22-P-2001MNE | |
| 2 | Disconnect cable tie (2) | ||
| 3 | Remove valve unit (7) with attached lines from bracket (1) and fix in place on vehicle | AR32.22-P-2015MNE | |
| 4 | Unclip electrical connectors (3) from bracket (1) | ||
| 5 | Remove cable tie (4) | ||
| 6 | Unscrew nuts (5) and remove bracket (1) | *BA32.22-P-1002-03H | |
| 7 | Remove elastomer bearings (6) | When replacing bracket (1). | |
| Check | |||
| 8 | Check elastomer bearings (6) for hardening and damage | If there are problems ↓ Replace elastomer bearings (6). |
|
| 9 | Install in the reverse order |
AIR SUSPENSION
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA32.22-P-1002-03H | Bolt/nut, bracket for compressor unit to body/cross member | Nm | 20 |
