(Remove/Install Intermediate Shaft - AR33.30-P-0625MNI)
Model 290 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 22.03.2021 | Check of pilot bushing (4), added. |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||

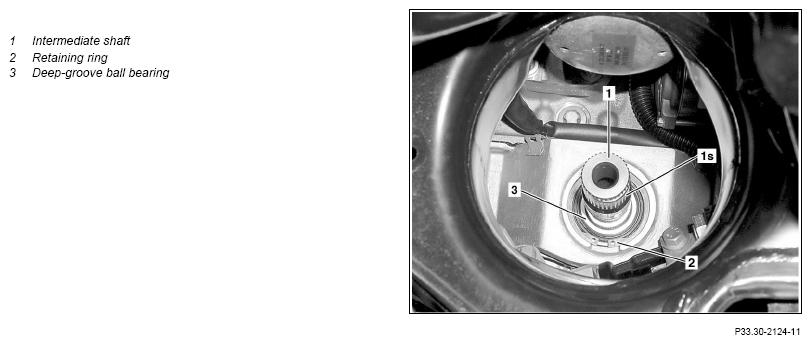

| 1 | Remove left front axle shaft. | AR33.30-P-0620MNI | |
| 2 | Detach retaining ring (2). | ||
| 3 | Remove intermediate shaft (1) with deep-groove ball bearing (3). | ||
| Check | |||
| 4 | Check intermediate shaft (1) and deep-groove ball bearing (3) for damage. | If damage is found, ↓ Replace intermediate shaft (1) or deep-groove ball bearing (3). |
|
| Replace intermediate shaft deep-groove ball bearing. | AR33.30-P-0625-02LWX | ||
| Length "a" for grooved ball bearing wheel offset | *BE33.30-P-1001-04C | ||
| Fig 1 | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||

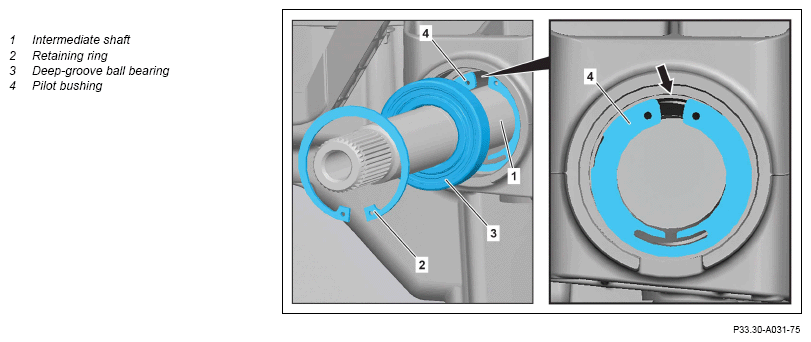

| 5 | Check pilot bushing (4) for damage. | If pilot bushing (4) is damaged: ↓ Replace pilot bushing (4). LH Observe installation position (arrow). |
|
| 6 | Check pilot bushing (4) is correctly seated in oil pan. | The pilot bushing (4) must be installed in the oil pan. Otherwise, the radial shaft sealing ring on the front axle differential will be damaged. If the pilot bushing (4) is not correctly seated in the oil pan: ↓ Install pilot bushing (4) correctly in oil pan. |
|
| Install | |||
| 7 | Install intermediate shaft (1) with deep-groove ball bearing (3). | ||
| 8 | Attach retaining ring (2). | ||
| 9 | Install left front axle shaft. | AR33.30-P-0620MNI |
INTERMEDIATE SHAFT
| Number | Designation | Model 290 | |||
|---|---|---|---|---|---|
| BE33.30-P-1001-04C | Length "a" for grooved ball bearing wheel offset | With an intermediate shaft length of | 472.0 mm | mm | - |
| 478.5 mm | mm | 334, 5...334, 7 | |||
| 479.3 mm | mm | - | |||
| 504.3 mm | mm | - | |||
| 510.0 mm | mm | 366, 0...366, 2 | |||
