(Remove/Install Rear Engine Mount - AR22.10-P-1160OIB)
Engine 654 in model 257
Engine 656 in model 213, 238, 257

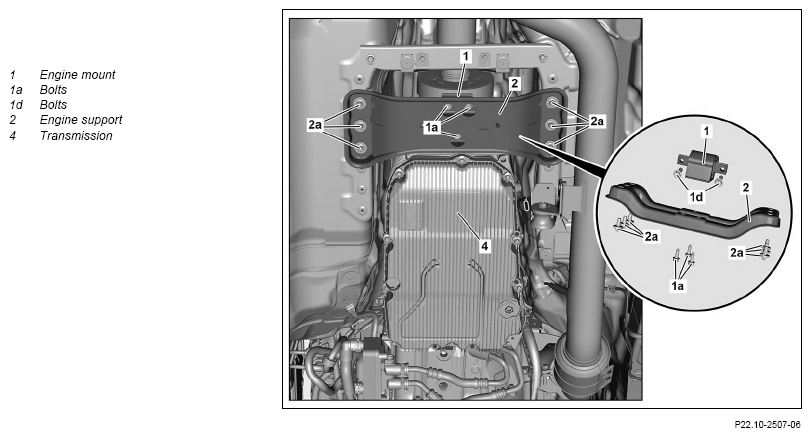

Shown without code M005 (4MATIC)

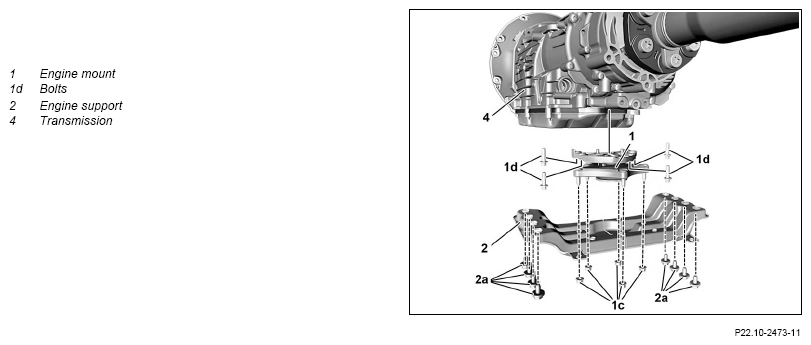

Shown with CODE M005 (4MATIC)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining. | Engine 654, 656 in model 257 | AR61.20-P-1105FR |
| Engine 656 in model 213, 238 | AR61.20-P-1105LWE | ||
| 2 | Support transmission (4). | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 3.1 | Remove bolts (1a). | Model 213, 238, 257 with engine 656 except code M005 (4MATIC) Model 257 with engine 654 except code M005 (4MATIC) | |
| *BA22.10-P-1004-03N | |||
| *BA22.10-P-1004-03O | |||
| 3.2 | Remove engine carrier (2). | Engine 654 in model 257 with code M005 (4MATIC) Engine 656 in model 213, 238, 257 with code M005 (4MATIC) | |
| AR22.10-P-4360OIB | |||
| 4 | Lift transmission (4) somewhat. | Engine 654 in model 257 except code M005 (4MATIC) Engine 656 in model 213, 238, 257 except code M005 (4MATIC) | |
| 5 | Remove screws (1d) and remove engine mount (1). | *BA22.10-P-1003-03N | |
| *BA22.10-P-1003-03O | |||
| Check | |||
| 6 | Check the engine mount (1) for damage. | If complaints are present, ↓ Replace engine mount (1). |
|
| 7 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 256, 264, 274, 276, 642, 654, 656 | Model 257 | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-03N | Bolt, rear engine mount to bracket/transmission | M8 | Nm | 30 | 30 |
| M10 | Nm | 50 | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (4MATIC) | Model 238 with code M005 (4MATIC) | |
|---|---|---|---|---|
| BA22.10-P-1003-03O | Bolt, rear engine mount to bracket/transmission | Nm | 50 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 256, 264, 274, 276, 642, 654, 656 | Model 257 | ||
|---|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 | 18 |
| M8 | Nm | 30 | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (4MATIC) | |
|---|---|---|---|
| BA22.10-P-1004-03O | Rear engine mount to engine support | Nm | 30 |
