(Remove/Install Rear Engine Support - AR22.10-P-4360OIB)

Engine 654 in model 257

Engine 656 in model 213, 238, 257

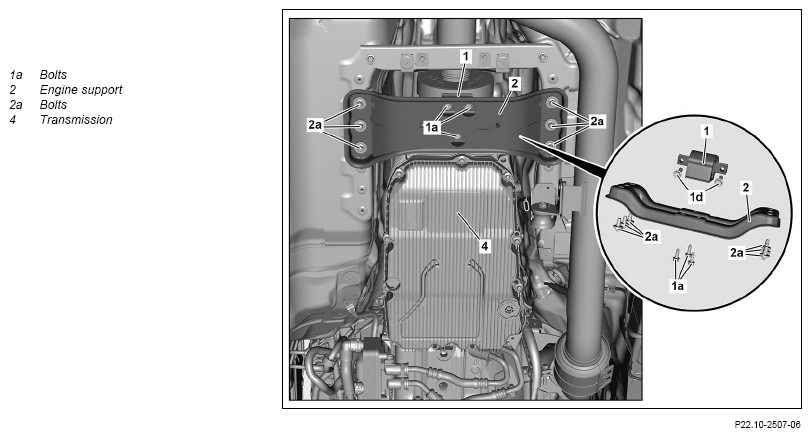

Shown without code M005 (4MATIC)

G13770986Courtesy of MERCEDES-BENZ USA

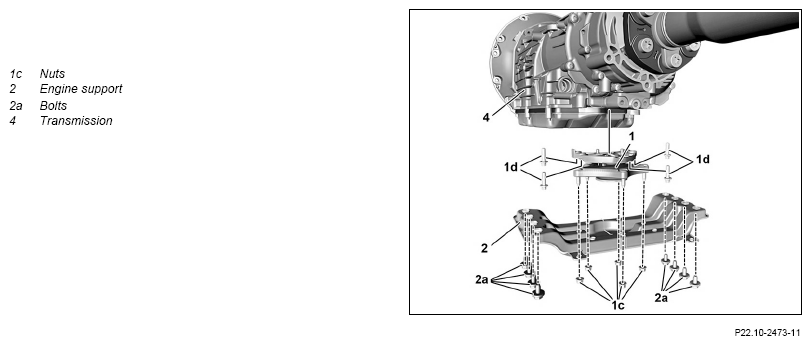

Shown with CODE M005 (4MATIC)

G13770987Courtesy of MERCEDES-BENZ USA
WARNING Warning Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Caution Risk of injury caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove lower center and rear engine compartment lining. Engine 656 in model 213, 238 AR61.20-P-1105LWE
    Engine 654, 656 in model 257 AR61.20-P-1105FR
2 Support transmission (4).
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
3.1 Remove bolts (1a). Model 213, 238, 257 with engine 656 except code M005 (4MATIC) Model 257 with engine 654 except code M005 (4MATIC)
    TORQUE SPECIFICATION Engine 654 in model 257 except code M005 (4MATIC) Engine 656 in model 213, 257 except code M005 (4MATIC) Rear engine mount to engine support *BA22.10-P-1004-03N
    TORQUE SPECIFICATION Engine 656 in model 238 except code M005 (4MATIC) Rear engine mount to engine support *BA22.10-P-1004-03O
3.2 Unscrew nuts (1c). Engine 654 in model 257 with code M005 (4MATIC)
Engine 656 in model 213, 238, 257 with code M005 (4MATIC)
    TORQUE SPECIFICATION Engine 654 in model 257 with code M005 (4MATIC) Engine 656 in model 213, 257 with code M005 (4MATIC) Rear engine mount to engine support *BA22.10-P-1004-03N
    TORQUE SPECIFICATION Engine 656 in model 238 with code M005 (4MATIC) Rear engine mount to engine support *BA22.10-P-1004-03O
4 Remove screws (2a) and remove engine carrier (2). NOTES Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (2a). Otherwise, the threads will be damaged.
    TORQUE SPECIFICATION Engine 654 in model 257 Engine 656 in model 213, 257Bolt, rear engine support to body *BA22.10-P-1005-03N
    TORQUE SPECIFICATION Engine 656 in model 238 except code M005 (4MATIC) Engine 656 in model 238 with code M005 (4MATIC) Bolt, rear engine support to body *BA22.10-P-1005-03O
5 Install in the reverse order.
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 213 with engine 256, 264, 274, 276, 642, 654, 656 Model 257
BA22.10-P-1004-03N Rear engine mount to engine support M6 Nm 18 18
M8 Nm 30 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 238 except code M005 (4MATIC) Model 238 with code M005 (4MATIC)
BA22.10-P-1004-03O Rear engine mount to engine support Nm 30 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 213 with engine 256, 264, 274, 276, 642, 654, 656 Model 257
BA22.10-P-1005-03N Bolt, rear engine support to body M10 Stage 1 Nm 30 30
Stage 2 Nm 50 50
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 238 except code M005 (4MATIC) Model 238 with code M005 (4MATIC)
BA22.10-P-1005-03O Bolt, rear engine support to body Stage 1 Nm 30 30
Stage 2 Nm 50 50
