(Remove/Install Flywheel/Drive Plate - AR03.30-P-8001OLC)
Engine 654 in model 213, 238, 257
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove transmission. | Engine 654.8 in model 257 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0005OIH |
| Engine 654 in model 238 with transmission 716.7 | AR26.10-P-0020OLD | ||
| Engine 654 in model 257 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500OLB | ||
| Engine 654 in model 213.016/216 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLC | ||
| Model 213, 238 with engine 654 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.10-P-0500OLD | ||
| Model 213 (except 213.016/216), 238 with engine 654 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.10-P-0500OLC | ||
| 2 | Remove crankshaft Hall sensor (B70). | AR15.12-P-2134OLC | |

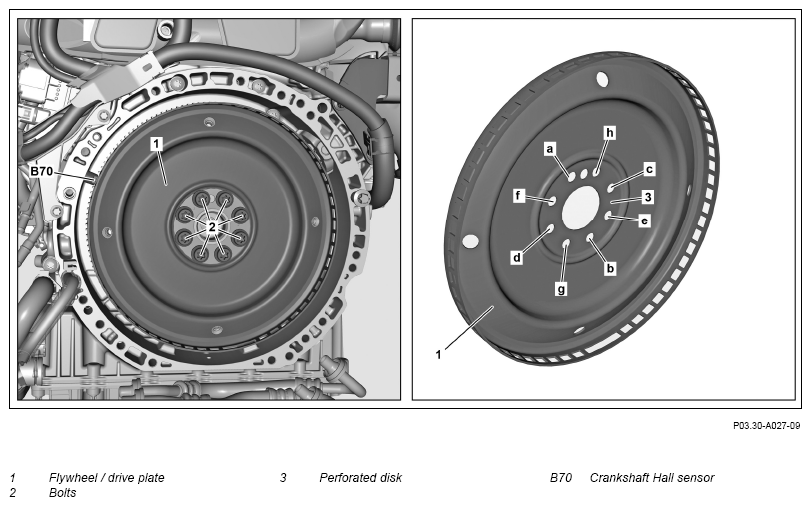

| 3 | Counterhold crankshaft at belt pulley/vibration damper with counterholder and loosen screws (2). | Do not use an impact wrench/driver or a similar compressed air tool to loosen the screws (2). Otherwise, damage to the crankshaft will occur. |
Fig 1 |
| 4 | Unscrew bolts (2) and remove flywheel/drive plate (1) with perforated disk (3). | ||
| 5 | Check rear radial shaft sealing ring for leak tightness and damage. | If there are problems: ↓ Replace rear radial shaft sealing ring. |
AR03.20-P-3003OLC |
| Install | |||
| 6 | Position flywheel/drive plate (1) with perforated disk (3) on crankshaft. | ||
| 7 | Screw in bolts (2) and tighten as per figure in alphabetic order (a to h). | Do not use an impact wrench or similar pneumatic tool to screw in bolts (2). Otherwise the thread in the crankshaft flange will be damaged. Aid of helper required. Replace screws (2). |
*BA03.30-P-1002-01X |
| Fig 1 | |||
| 8 | Install crankshaft Hall sensor (B70). | AR15.12-P-2134OLC | |
| 9 | Install transmission. | Engine 654.8 in model 257 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0005OIH |
| Engine 654 in model 238 with transmission 716.7 | AR26.10-P-0020OLD | ||
| Engine 654 in model 257 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.10-P-0500OLB | ||
| Engine 654 in model 213.016/216 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLC | ||
| Engine 654 in model 213, 238 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500OLD | ||
| Engine 654 in model 213 (except 213.016), 238 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.10-P-0500OLC |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 654 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01X | Bolt, flywheel/two-mass flywheel/drive plate to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
