Remove/Install Low-Temperature Circuit Additional Radiator - AR09.41-P-3001MSA

Engine 256.9 in model 213, 238, 257, 290

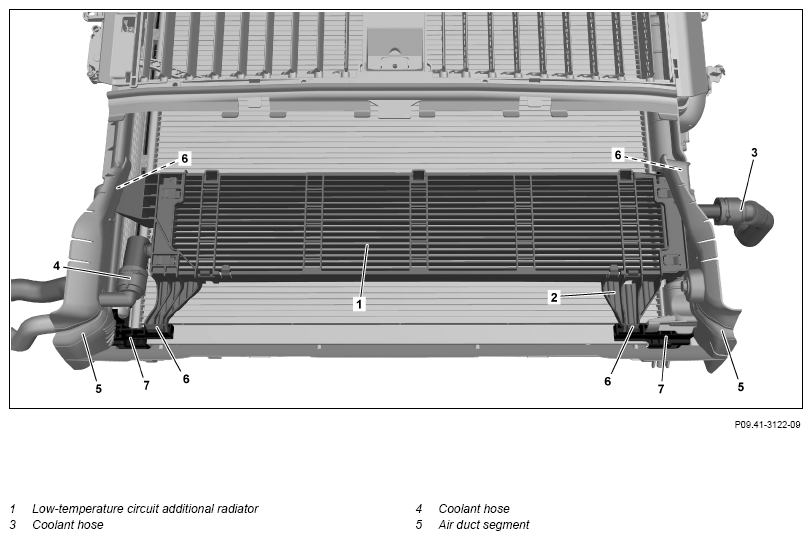

Fig 1: Low-Temperature Circuit Additional Radiator Components Location - Engine 256.9 In Model 213 (Shown On Model 257)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 257 without code M016 (Uprated engine)

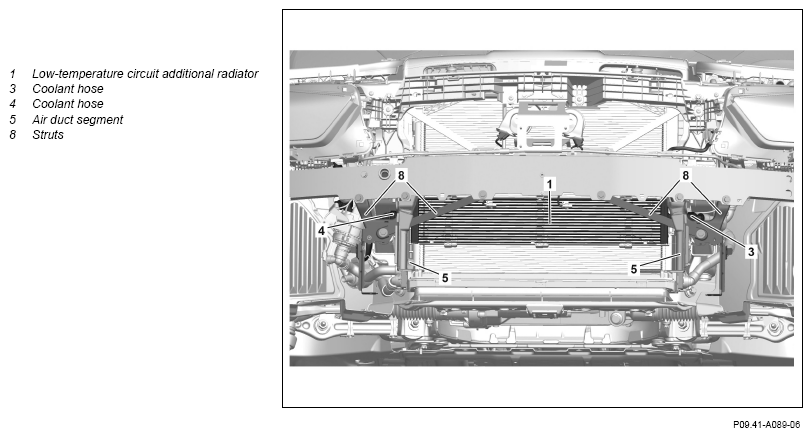

Shown on model 290

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove lower radiator shutters.	Engine 256.9 in model 213, 238, 257 with code 2U1 (Radiator shutter) Engine 256.9 in model 290	AR20.20-P-3884OIB
2	Remove additional cooler.	Engine 256.9 in model 213, 238, 257 with code M016 (Uprated engine) Engine 256.9 in model 290	AR20.20-P-3866MSA
3	Drain coolant from low-temperature circuit.		AR09.41-P-6834MSA
4	Remove struts (8).	Engine 256.9 in model 290
		Bolt, strut to soundproofing	*BA62.30-P-1004-01H
		Bolt, strut to cross member	*BA62.30-P-1003-01H
5	Remove coolant hose (3) from low-temperature circuit additional cooler (1) and seal openings with protective covers.		AR20.20-P-7441-01RQ
		Set of protective covers	Fig 2
6	Remove coolant hose (4) from low-temperature circuit additional cooler (1) and seal openings with protective covers.		AR20.20-P-7441-01RQ
		Set of protective covers	Fig 2
7	Unclip air duct segments (5).
8	Unclip low-temperature circuit additional cooler (1) and remove.
9	Install in the reverse order.

Fig 2: Identifying Record Plug (001 589 01 91 00)

Courtesy of MERCEDES-BENZ USA
